TYPE R AIR FRICTION CLUTCH MODEL 394

Overview

Type R Air Friction Clutch Model 394 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

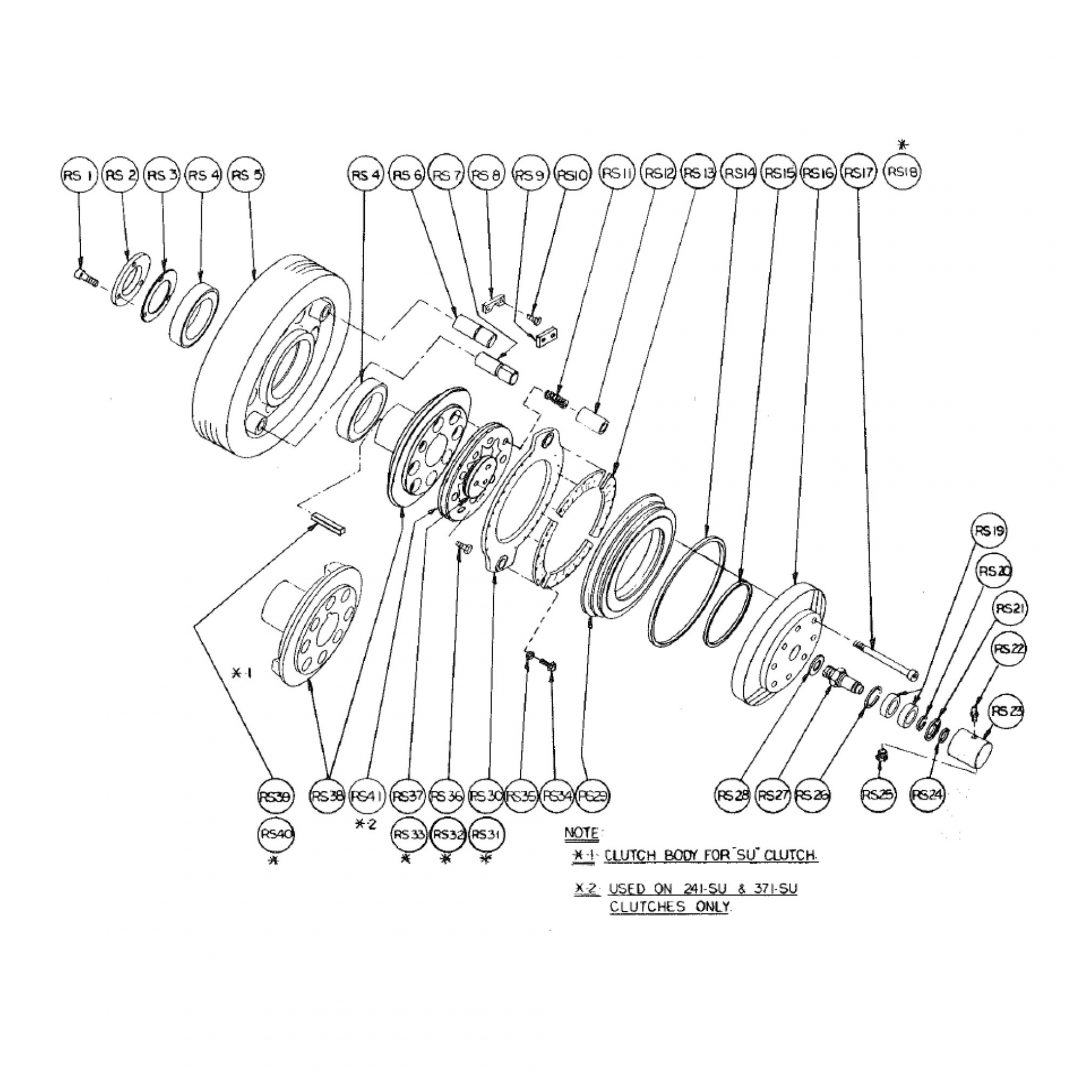

Type R Air Friction Clutch Model 394

Item NumberDescriptionQuanity11-SU Mod. B NoDec 196611-SU Mod D. Aug. 197521-SU Mod. B Dec 1966
RS-1Bearing Collar Screw4 pcs.2013-A-9051-22013-A-9051-22013-A-9051-2
RS-2Bearing Collar1 pc.0043-2-0077-20043-2-0077-20043-2-0077-2
RS-3Fw. Bearing Shims
.002“ Thk.- Red2 pcs.0043-3-0426-20043-3-0426-20043-3-0426-2
.005“ Thk.- Blue2 pcs.0043-3-0427-20043-3-0427-20043-3-0427-2
.0075“ Thk.-Trans.2 pcs.0043-3-0428-20043-3-0428-20043-3-0428-2
RS- 4Flywheel Bearings
Timken Cup2 pcs.6150-0-1921-26150-0-1921-26150-0-1921-2
Timken Cone2 pcs.6150-0-2820-26150-0-2820-26151-0-2820-2
RS- 5Flywheel1 pc.Check RecordCheck RecordCheck Record
RS-6Friction Disc Pin - Round2 pcs.0042-2-0419-2
Friction Disc Pin - Round1 pc.0042-2-0419-20042-2-0419-2
RS-7Friction Disc Pin-Flat1 pc.0042-3-0467-20042-3-0467-2
RS-8Keeper Plate - Round2 pcs.0043-2-0247-2
Keeper Plate-Round1 pc.0043-2-0247-20043-2-0247-2
RS- 9Keeper Plate - Flat1 pc.0042-3-0439-20042-3-0439-2
RS- 10Keeper Plate Screws4 pcs.1314-3-0012-21314-3-0012-21314-3-0012-2
RS-11Brake Springs8 pcs.6661-0-0049-26661-0-0049-26661-0-0049-2
RS- 12Drive Pins8 pcs. 0048-3-0092-20048-3-0092-20048-3-0092-2
RS- 13Clutch Linings8 pcs.0042-1-0149-20042-1-0149-20042-1-0149-2
RS- 14U- Packing-Outer1 pc.2314-A-2606-22314-A-2606-22314-A-2606-2
RS-15U- Packing-Inner1 pc.2314-A-6168-22314-A-6168-22314-A-6168-2
RS-16
Air Cylinder1 pc.0047-1-0077-23684-D-8523-23684-D-8526-2
RS-17Air Cylinder Bolts8 pcs.2013-Z-0840-22011-A-8309-22011-A-8310-2
*RS-18Air Swivel Assembly1 pc.0048-1-0232-4
RS-19Swivel Ball Bearings2 pcs.2421·A-3113-2
Swivel Ball Bearing1 pc.2421-A-3113-22421-A-3112-2
Swivel Ball Bearing1 pc.2422-A-3713-22422-A-3712-2
RS-20Retainer Ring1 pc.Not Used2125-A-0058-22125-A-0053-2
RS-21U- Packing1 pc.Not UsedNot Used5920-0-0110-2
RS-22Alemite Fitting1 pc.2294-A-2101-22294-A-2101-28393-0-0150-2
RS-23Housing1 pc.0043-2-0001-2Not Used0048-2-0233-2
RS-24Spacer Ring1 pc.Not Used3318-A-6112-20048-3-0234-2
RS-25Reducer Bushing1 pc.222-Z-4208-2222-Z-4208-2Not Used
RS-26Retainer Ring1 pc.Not UsedNot Used2125-Z-1039-2
RS-27Swivel Sleeve1 pc .0043-2-0036-23369-A-9132-20048-2-0236-2
RS-28Sleeve Gasket1 pc.5840-0-0361-22311-A-2167-20048-3-0237-2
RS-29Air Cylinder Piston1 pc.0048-1-0039-20048-1-0039-20048-1-0039-2
RS-30Clutch Friction Disc Assembly1 pc.0043-2-0297-40043-2-0497-40042-2-0497-4
*RS-31Clutch Friction Disc 1 pc.3491-C-3188-23491-C-3188-23491-C-3188-2
*RS-32Clutch Friction Disc Bush.-Round2 pcs.3341-B-6106-2
Clutch Friction Disc Bush.-Round1 pc.3341-B-6106-23341-B-6106-2
*RS-33Clutch Friction Disc Bush.-Flat1 pc.3344-B-9111-23344-B-9111-2
RS-34Clutch Lining Screws24 pcs. 2011-Z-1639-22011-Z-1639-22011-Z-1639-2
RS-35Clutch LIning Screw Nuts24 pcs. 5815-0-0006-25815-0-0006-25815-0-0006-2
RS-36End Plate Screws4 pcs. 1314-3-0032-21314-3-0032-21314-3-0032-2
RS-37End Plate-(Crankshaft)1 pc.0047-3-0060-20047-3-0060-23286-B-3119-2
RS-38Clutch Body1 pc.0047-1-0066-20047-1-0066-23684-C-8623-2
RS-39Shaft Key1 pc.2531-Z-6563-22531-Z-6563-22531-Z-6563-2
