TYPE SU AIR FRICTION CLUTCH MODEL 241 and 371

Overview

Type SU Air Friction Clutch Model 241 and 371 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

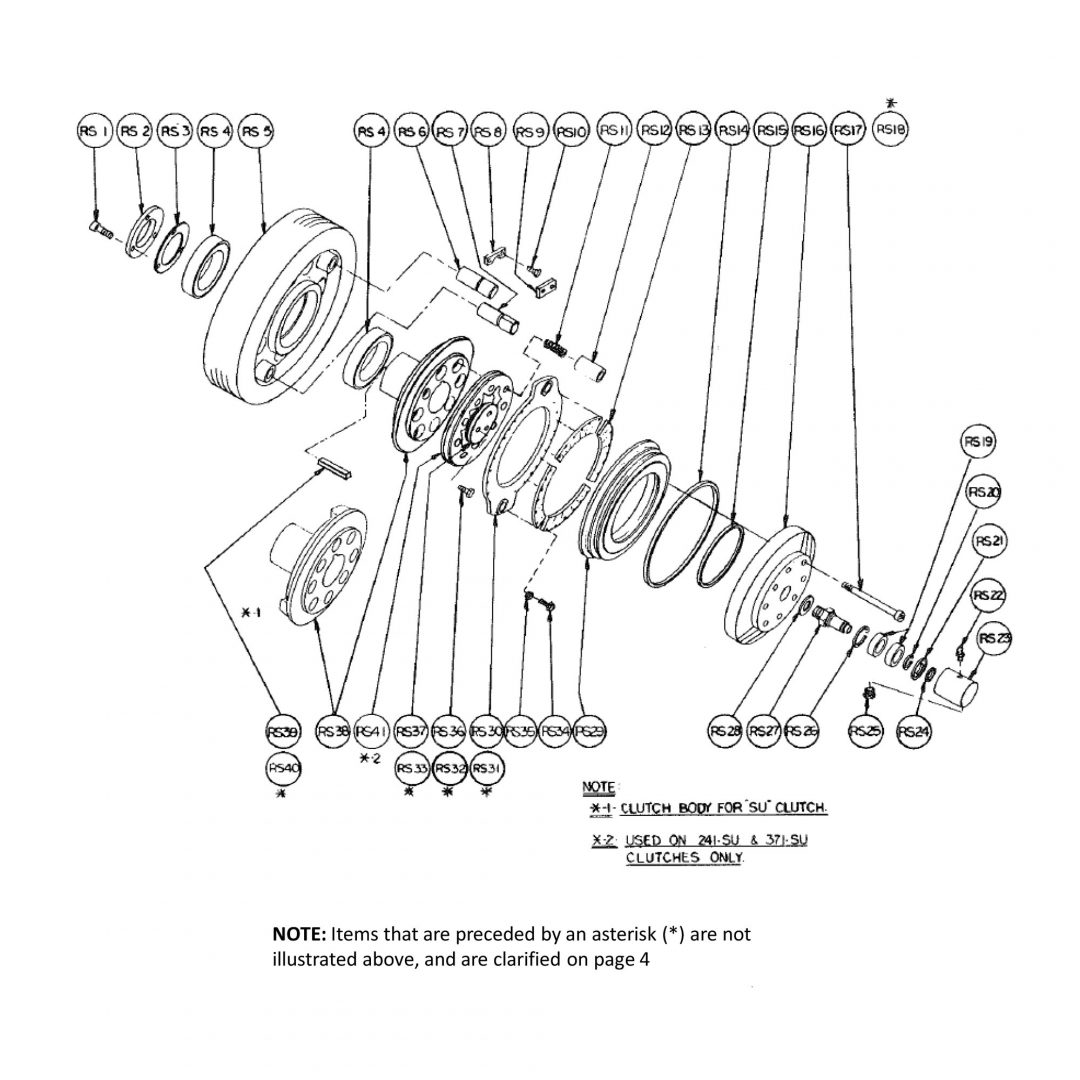

Type SU Air Friction Clutch Model 241 and 371

Item NumberDescriptionQuanity241-SU Mod. A Dec 1966241-SU Mod B. May 1972241-SU Mod. D Aug.1975371-SU Mod. D. Aug. 1975
RS-1Bearing Collar Screw6 pcs.1314-3-0027-21314-3-0027-21314-3-0027-2
Bearing Collar Screw3 pcs.1314-3-0027-2
RS-2Bearing Collar1 pc. 0043-2-0232-20043-2-0232-23380-B-1826-20043-2-0399-2
RS-3Fw. Bearing Shims
.003“ Thk.-Green2 pcs.0043-2-0238-20043-2-0238-23124-A-8114-23125-A-1124-2
.005“ Thk.-Blue2 pcs.0043-2-0239-20043-2-0239-23124-A-8116-23125-A-1125-2
.0075“ Thk.-Trans.2 pcs.0043-2-0237-20043-2-0237-23124-A-8115-23125-A-1126-2
RS-4Flywheel Bearings
Timken Cup2 pcs.6150-0-1760-26150-0-1760-26150-0-1760-26150-0-1770-2
Timken Cone2 pcs.6151-0-2563-26151-0-2563-26151-0-2563-26151-0-2582-2
RS-5Flywheel1 pc.Check RecordCheck RecordCheck RecordCheck Record
RS-6Friction Disc Pin - Round2 pcs.0042-3-0588-20042-3-0588-20042-3-0588-20042-2-0571-2
RS-7Friction Disc Pin - Flat2 pcs.0042-3-0589-20042-3-0589-20042-3-0589-20042-2-0572-2
RS-8Keeper Plate - Round2 pcs.0043-3-0250-20043-3-0250-20043-3-0250-20043-2-0247-2
RS-9Keeper Plate - Flat2 pcs.0042-3-0427-20042-3-0427-20042-3-0427-20042-3-0439-2
RS-10Keeper Plate Screws8 pcs.1314-3-0008-21314-3-0008-21314-3-0008-21314-3-0012-2
RS-11Brake Springs8 pcs.6661-0-0021-26661-0-0021-26661-0-0021-26661-0-0157-2
RS-12Drive Pins8 pcs.0048-3-0133-20048-3-0133-20048-3-0133-20048-3-0187-2
RS-13Clutch Linings16 pcs.0042-1-0139-20042-1-0139-20042-1-0139-20042-1-0138-2
RS-14U-Packing - Outer1 pc.2314-A-6191-22314-A-6191-22314-A-6191-25920-0-0077-2
RS-15U-Packing - Inner1 pc.5920-0-0045-25920-0-0045-25920-0-0045-25920-0-0053-2
RS-16Air Cylinder1 pc.0048-1-0135-23684-C-9221-23684-C-9230-23684-C-9231-2
RS-17Air Cylinder Bolts8 pcs.1314-3-0029-21314-3-0029-21314-3-0029-21314-3-0029-2
*RS-18Air Swivel Assembly1 pc.0048-1-0232-40048-1-0232-4
RS-19Swivel Ball Bearings2 pcs.2421-A-3113-2
Swivel Ball Bearing1 pc.2421-A-3113-22421-A-3112-22421-A-3112-2
Swivel Ball Bearing1 pc.2422-A-3713-22422-A-3712-22422-A-3712-2
RS-20Retainer Ring1 pc.Not Used2125-A-0058-22125-A-0053-22125-A-0053-2
RS-21U-Packing1 pc.Not UsedNot Used5920-0-0110-25920-0-0110-2
RS-22Alemite Fitting1 pc.2294-A-2101-22294-A-2462-28393-0-0150-28393-0-0150-2
RS-23Housing1 pc.0043-2-0001-2Not Used0048-2-0233-20048-2-0233-2
RS-24Spacer Ring1 pc.Not Used3318-A-6112-20048-2-0234-20048-2-0234-2
RS-25Reducer Bushing1 pc.2222-Z-4208-22222-Z-4208-2Not UsedNot Used
RS-26Retainer Ring1 pc.Not Used2125-A-1042-22125-Z-1039-22125-Z-1039-2
RS-27Swivel Sleeve1 pc.0043-2-0036-23369-A-9132-20048-2-0236-20048-2-0236-2
RS-28Sleeve Gasket1 pc.5840-0-0361-22311-A-2167-20048-3-0237-20048-3-0237-2
RS-29Air Cylinder Piston1 pc.0048-1-0136-20048-1-0136-20048-1-0136-20048-1-0024-2
RS-30Clutch Friction Disc Assembly2 pcs.3684-B-4220-43684-B-4220-43684-B-4220-43684-B-4230-4
*RS-31Clutch Friction Disc2 pcs.3491-C-3114-23491-C-3114-23491-C-3114-23491-B-3150-2
*RS-32Clutch Friction Disc Bush.-Round2 pcs.3341-B-6102-23341-B-6102-23341-B-6102-23341-B-6106-2
*RS-33Clutch Friction Disc Bush.-Flat2 pcs.3344-B-9104-23344-B-9104-23344-B-9104-23344-B-9111-2
RS-34Clutch Lining Screws
48 pcs.2011-Z-1583-22011-Z-1583-22011-Z-1583-22011-Z-1639-2
RS-35Clutch Lining Screw Nuts48 pcs.5815-0-0004-25815-0-0004-25815-0-0004-25815-0-0006-2
RS-36End Plate Screws4 pcs.1314-3-0018-21314-3-0018-21314-3-0018-22011-A-8159-2
RS-37End Plate-(Crankshaft)1 pc.0043-3-0242-20043-3-0242-23286-B-3116-23286-A-3117-2
RS-38Clutch Body1 pc.0048-1-0137-20048-1-0137-23684-C-9126-23684-C-9127-2
RS-39Shaft Key1 pc.2531-Z-6469-22531-Z-6469-22531-Z-6469-25560-0-0450-2
*RS-40Disc Pin Retainer Ring4 pcs.6055-0-0344-26055-0-0344-26055-0-0344-22125-Z-1058-2
*RS-41Driving Disc1 pc.0043-1-0144-20043-1-0144-20043-1-0144-20043-1-0035-2
