TYPE SU AIR FRICTION CLUTCH MODEL 11 AND 21

Overview

Type SU Air Friction Clutch Model 11 and 21 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

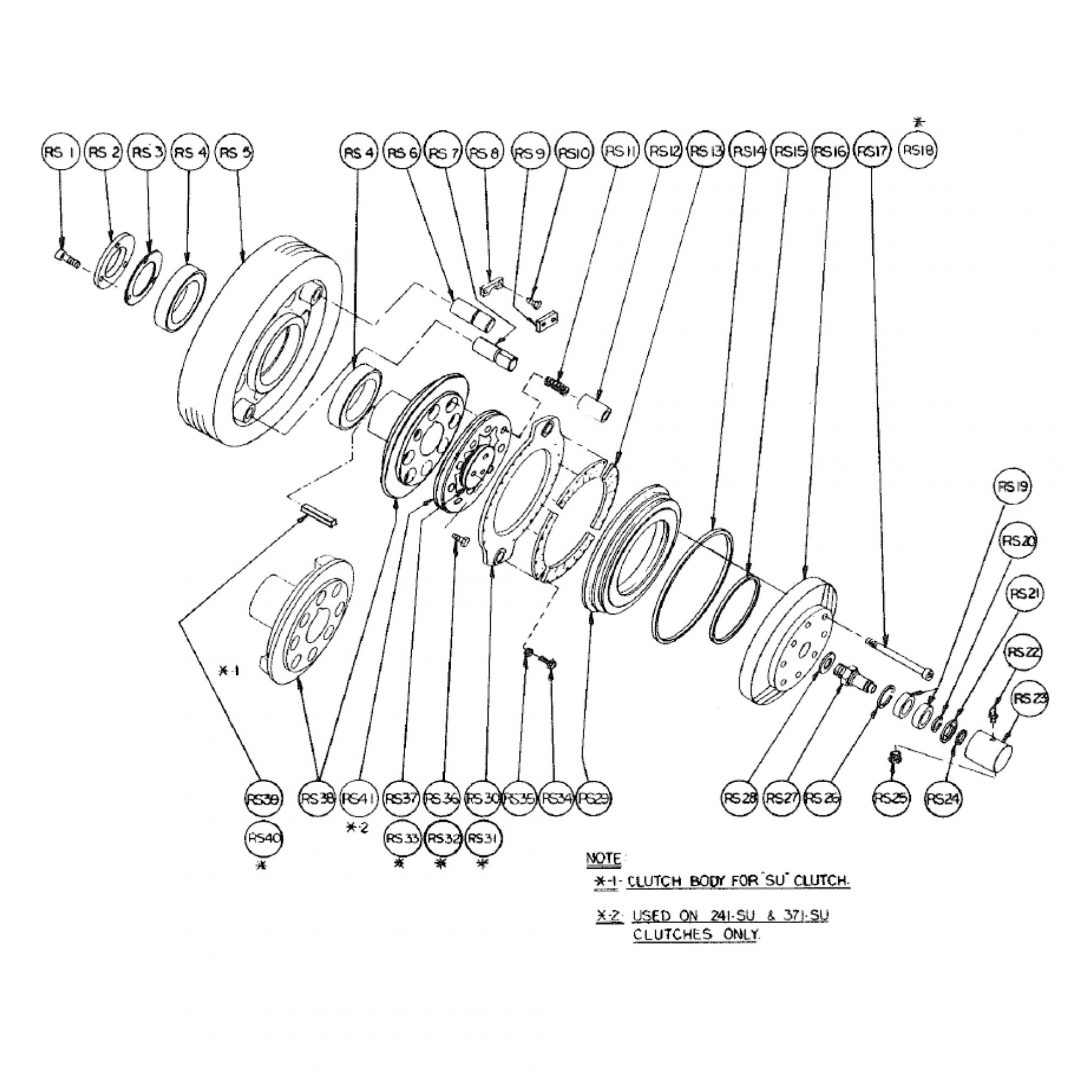

Type SU Air Friction Clutch Model 11 and 21

Item NumberDescriptionQuanity11-SU Mod. B Dec 196611-SU Mod D. Aug. 197521-SU Mod. B Dec 196621-SU Mod D. Aug. 1975
RS-1Bearing Collar Screw6 pcs.6326-0-0213-26326-0213-2
Bearing Collar Screw3 pcs.6326-0-0213-26326-0-0213-2
RS-2Bearing Collar1 pc. 0039-2-0067-23383-B-2109-20039-2-0067-23383-B-2109-2
RS-3Fw. Bearing Shims
.005“ Thk.-Blue2 pcs.0043-3-0146-23124-A-3128-20043-3-0146-23124-A-3128-2
.002“Thk.-Red5 pcs.0043-3-0147-23124-A-3127-20043-3-0147-23124-A-3127-2
RS-4Flywheel Bearings2 pcs.2422-A-3335-22422-A-3335-22422-A-3335-22422-A-3335-2
RS-5Flywheel1 pc.Check RecordCheck RecordCheck RecordCheck Record
RS-6Friction Disc Pin - Round1 pc.0043-3-0251-23263-A-4128-20043-3-0251-23263-A-4128-2
RS-7Friction Disc Pin - Flat1 pc.0043-3-0288-23261-A-6141-20043-3-0288-23261-A-6141-2
RS-8Keeper Plate - Round1 pc.0043-3-0252-20043-3-0252-20043-3-0252-20043-3-0252-2
RS-9Keeper Plate - Flat1 pc.0042-3-0015-20042-3-0015-20042-3-0015-20042-3-0015-2
RS-10Keeper Plate Screws4 pcs.1314-3-0007-21314-3-0007-21314-3-0007-21314-3-0007-2
RS-11Brake Springs3 pcs.6661-0-0017-26661-0-0017-26661-0-0017-26661-0-0017-2
RS-12Drive Pins6 pcs.0047-3-0036-20047-3-0036-20047-3-0036-20047-3-0036-2
RS-13Clutch Linings4 pcs.0042-1-0093-20042-1-0093-20042-1-0093-20042-1-0093-2
RS-14U-Packing - Outer1 pc.5920-0-0047-25920-0-0047-25920-0-0053-25920-0-0053-2
RS-15U-Packing - Inner1 pc.5920-0-0024-25920-0-0024-25920-0-0024-25920-0-0024-2
RS-16Air Cylinder1 pc.0048-1-0144-23684-C-9225-20048-1-0142-23684-C-9226-2
RS-17Air Cylinder Bolts6 pcs.2013-A-9040-22013-A-9040-22013-A-9040-22013-A-9040-2
*RS-18Air Swivel Assembly1 pc.2290-A-7222-20048-1-0231-42290-A-7222-20048-1-0231-4
RS-19Swivel Ball Bearing1 pc.Not Used2421-A-3112-2Not Used2421-A-3112-2
Swivel Ball Bearing1 pc.Not Used2422-A-3712-2Not Used2422-A-3712-2
RS-20Retainer Ring1 pc.Not Used 2125-A-0053-2Not Used2125-A-0053-2
RS-21U-Packing1 pc.Not Used5920-0-0110-2Not Used5920-0-0110-2
RS-22Alemite Fitting1 pc.Not Used8393-0-0150-2Not Used8393-0-0150-2
RS-23Housing1 pc.Not Used0048-2-0233-2Not Used0048-2-0233-2
RS-24Spacer Ring1 pc.Not Used0048-3-0234-2Not Used0048-3-0234-2
RS-25Reducer Bushing1 pc.Not Used2222-Z-1011-2Not Used2222-Z-1011-2
RS-26Retainer Ring1 pc.Not Used2125-Z-1039-2Not Used2125-Z-1039-2
RS-27Swivel Sleeve1 pc.Not Used0048-2-0236-2Not Used0048-2-0236-2
RS-28Sleeve Gasket1 pc.Not Used0048-3-0237-2Not Used0048-3-0237-2
RS-29Air Cylinder Piston1 pc.0048-1-0145-20048-1-0145-20048-1-0143-20048-1-0143-2
RS-30Clutch Friction Disc Assembly1 pc.3684-B-4202-43684-B-4202-43684-B-4202-43684-B-4202-4
*RS-31Clutch Friction Disc1 pc.3491-B-3102-23491-B-3102-23491-B-3102-23491-B-3102-2
*RS-32Clutch Friction Disc Bush. - Round1 pc.3340-A-6111-23340-A-6111-23340-A-6111-23340-A-6111-2
*RS-33Clutch Friction Disc Bush. - Flat1 pc.3344-A-9102-23344-A-9102-23344-A-9102-23344-A-9102-2
RS-34Clutch Lining Screws22 pcs.2011-Z-1582-22011-Z-1582-22011-Z-1582-22011-Z-1582-2
RS-35Clutch Lining Screw Nuts22 pcs.5815-0-0004-25815-0-0004-25815-0-0004-25815-0-0004-2
RS-36End Plate Screws2 pcs.1314-3-0006-21314-3-0006-21314-3-0006-21314-3-0006-2
RS-37End Plate - (Crankshaft)1 pc.0042-3-0019-23234-A-0137-20042-3-0019-23234-A-0137-2
RS-38Clutch Body1 pc.0043-1-0122-23684-C-7828-20043-1-0122-23684-C-7828-2
RS-39Shaft Key1 pc.5560-0-0156-25560-0-0156-25560-0-0156-25560-0-0156-2
