TYPE R AIR FRICTION CLUTCH MODEL 84

Overview

Type R Air Friction Clutch Model 84 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

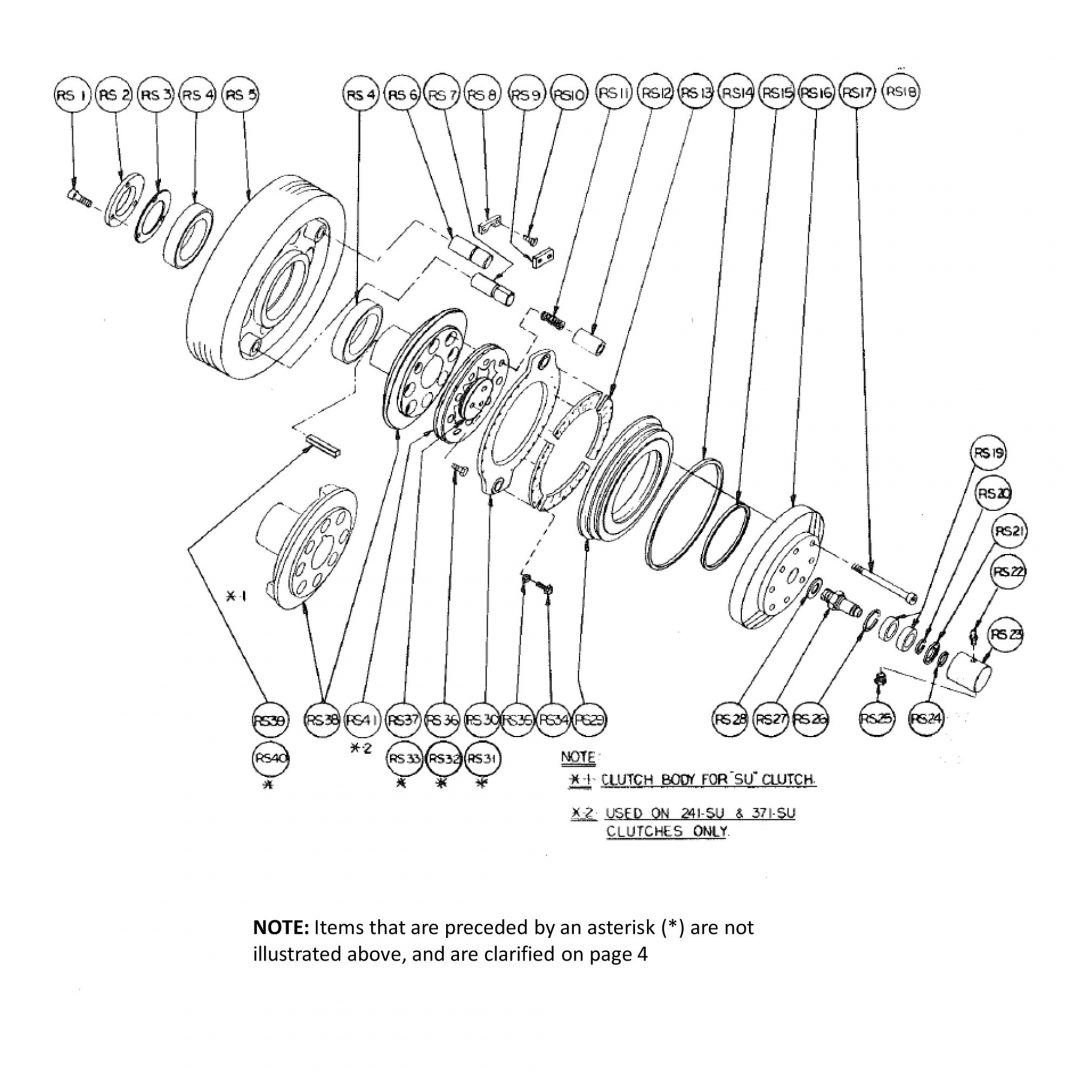

Type R Air Friction Clutch Model 84

Item NumberDescriptionQuanity84-R Mod.A Apr. 196184-R Mod.B Jan. 196784-R Mod.C Aug. 197084-R Mod.O Nov. 1975
RS-1Bearing Collar Screw6 pcs.6326- 0-0213-26326-0-0213-26326-0-0213-26326-0-0213-2
RS-2Bearing Collar1 pc.3382 -A - 2146-23382-A-2146- 23382-A -2146-23382-A-2146-2
RS-3Fw. Bearing Shims
.005“ Thk.- Blue2 pcs.0043- 3-0165 - 20043-3-0165-20043-3-0165-23124-A-5120-2
.002“ Thk.- Red5 pcs.0043- 3-0164-20043-3-0164-20043-3-0164-23124-A-5119-2
RS- 4Flywheel Bearings2 pcs.6250- 0-0125 - 26250-0-0125-26250-0-0125-26250-0-0125-2
RS- 5Flywheel1 pc.Check RecordCheck RecordCheck RecordCheck Record
RS-6Friction Disc Pin - Round2 pcs.0043-3-0002-2
Friction Disc Pin-Round1 pc.0042-3-0615-20042-3-0615- 23263-A-4127-2
RS-7Friction Disc Pin - Flat1 pc.0042-3-0616-20042-3-0616-23261-A-6140-2
RS-8Keeper Plate - Round2 pcs.0042- 3-0090- 2
Keeper Plate - Round1 pc.0043-3-0250-20043-3-0250-20043-3-0250-2
RS- 9Keeper Plate - Flat1 pc.0042-3-0427-20042-3-0427-20042-3-0427-2
RS- 10Keeper Plate Screws4 pcs.2013-Z-0617-21314-3-0008-21314-3-0008-2 1314-3-0008-2
RS-11Brake Spring4 pcs.6661-0-0008-26661-0-0008-26661-0-0008-26661-0-0008-2
RS- 12Drive Pins8 pcs.0047-3-0008-20047-3-0008-20047-3-0008-20047-3-0008-2
RS- 13Clutch Linings8 pcs. 0042-1-0136- 20042-1-0136- 20042-1- 0136-20042-1-0136-2
RS- 14U- Packing-Outer1 pc.2314- A-6186-22314-A-6186-22314-A-6186-22314-A-6186-2
RS-15U- Packing - Inner1 pc.5920-0-0041-25920-0-0041-25920-0-0041-25920-0-0041-2
RS-16
Air Cylinder1 pc.0047-1-0022-20047-1-0022-23684-C-9123-23684-C-9125-2
RS-17Air Cylinder Bolts8 pcs. 6326-0-0313-21314-3-0025-22011-A-8228-22013-A-9077-2
*RS-18Air Swivel Assembly1 pc.0048-1-0231-4
RS-19Swivel Ball Bearing2 pcs.2421-A-3113 - 22421-A-3113-2
Swivel Ball Bearing1 pc .2421-A-3113-22421-A-3112-2
Swivel Ball Bearing1 pc.2422-A-3713-22422-A-3712-2
RS-20Retainer Ring1 pc.Not UsedNot Used2125-A-0058-22125-A-0053-2
RS-21U- Packing1 pc .Not UsedNot UsedNot Used5920-0-0110-2
RS-22Alemite Fitting1 pc.2294-A-2101-22294-A-2101-22294-A-2101-28393-0-0150- 2
RS-23Housing1 pc.0043-2-0001-20043-2-0001-2Not Used0048-2-0233-2
RS-24Spacer Ring1 pc.Not UsedNot Used3318-A-6112- 20048-3-0234-2
RS-25Reducer Bushing1 pc.2222-Z-4208-22222-Z-4208-22222-Z-4208-22222-Z-1011-2
RS-26Retainer Ring1 pc.Not UsedNot UsedNot Used2125-Z-1039-2
RS-27Swivel Sleeve1 pc.0043-2-0036-20043-2-0036-23369-A-9132-20048-2-0236-2
RS-28Sleeve Gasket1 pc.5840-0-0361-25840-0-0361-22311-A -2167-20048-3-0237-2
RS-29Air Cylinder Piston1 pc.0047 - 1- 0021 - 20047-1-0021-20047-1-0021-20047-1-0021-2
RS-30Clutch Friction Oise Assembly1 pc.0043- 2-0295 - 43684-B-4213-43684-B-4213-43684-B-4213-4
RS-31Clutch Friction Disc1 pc.3491 -C-3107 - 23491-C-3107-23491-C-3107-23491-C-3107-2
RS-32Clutch Friction Disc Bush. - Round2 pcs.3341 - 8-6102 - 2
Clutch Friction Disc Bush. ·Round1 pc.3341-B-6102-23341-B-6102-2 3341-B-6102-2
RS-33Clutch Friction Oise Bush. - Flat1 pc .3344-B-9104-23344-B-9104-23344-B-9104-2
RS-34Clutch Lining Screws24 pcs.12011 -Z- 1583-22011-Z-1583-22011-Z-1583-22011-Z-1583-2
RS-35Clutch Lining Screw Nuts24 pcs.5815-0-0004 ·25815-0-0004-25815-0-0004-25815-0-0004-2
RS-36End Plate Screws3 pcs.2013.Z.0721-21314-3-0015-21314-3-0015-21314-3-0015-2
RS-37End Plate - (Crankshaft)1 pc.0043-3- 0048-20043-3-0048-20043-3-0048-23286-A-2119-2
RS-38Clutch Body1 pc.0047 -1-0084 ·20047-1-0084-20047-1-0084- 23684-C-8616-2
RS-39Shaft Key1 pc.5560-0-0267 - 25560-0-0267-25560-0-0267- 25560-0-0267-2
