SERIES BN-FORM A-41

Overview

Series BN-Form-A-41 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

FRAME ASSEMBLY

1Frame31Screw
2Bolster Plate32Hex Nut
3Screw33Cotter Pin
4Slide34Gear Box Cover
5Ram Adjustment Assembly (See Sepatrate Part List)35Screw
6Slide Cover36Limit Switch Mount Plate
7Screw37Screw
8Overload Manifold38Limit Switch
9Screw39Screw
10Overload Protector40Sprocket
11Screw41Key
12Counter Blance Bracket42Snap Ring
13Screw43Guard
14Release Valve Manifold44Screw
15Release Valve 45Chain
16Frame Gib46Air Tank
17Screw47Tank Bracket & Rod
18Frame Gib Sim48Motor Slide Base
19Slide Liner (Front & Rear)49Screw
20Screw50Motor
21Side Slide Liner51Drive Assembly (See Sperate Part List)
22Side Slide Liner Backing Plate52Rear Cover With Hinges
23Lock Jam Nut53Screw
24Push Screw54Wire Cover
25Pull Screw55Screw
26Crankshaft/Maingear Assembly (See Separate Part List)56Control Enclosure
27Air Control Assembly57Control Enclosure Bracket
28Screw58Shock Mount
29Counter Balance Cylinder59Screw
30Spacer60Screw

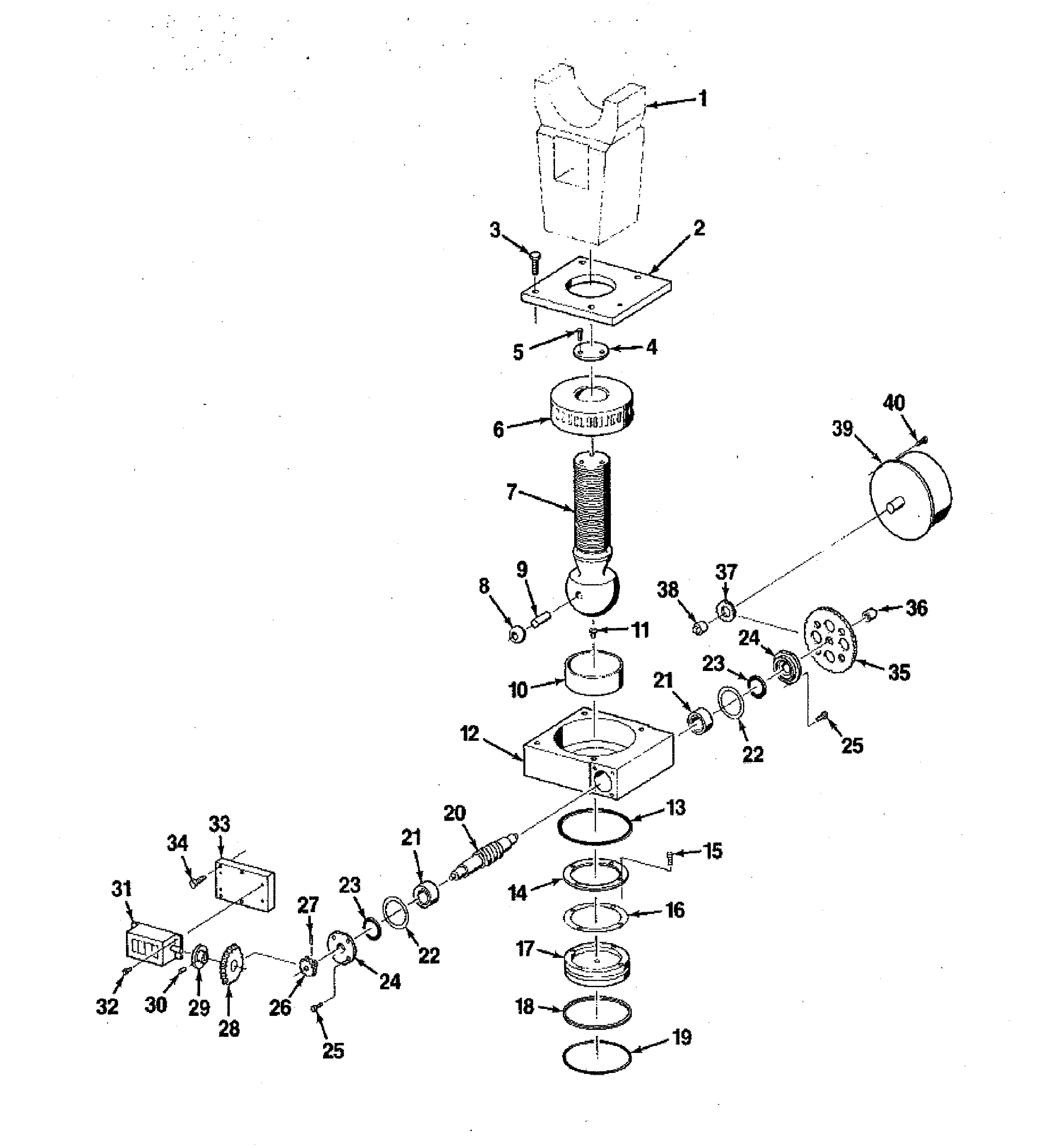

SLIDE ADJUSTMENT ASSEMBLY

1Connection (Ref)11Pan Head Screw22Shim33Counter Spacer
2Worm Wheel Retainer12Worm Wheel Enclosure23Seal34Screw
3Screw13O' Ring24Bearing Cover35Slide Adjustment Gear
4Adjusting Screw Cap14Spacer25Screw36Gear Mount
5Screw15Screw26Bevel Gear37Pinion
6Worm Wheel 16Shim27Roll Pin38Gear Mount
7Ball Screw17Piston28Bevel Gear39Motor
8Spherical Bearing18Back Up Ring29Flanged Bushing40Screw
9Pin19O' Ring30Roll Pin
10Ball Seat20Worm Shaft31Counter
21Bearing32Screw

Crankshaft/Main Gear Assembly

1Stroke Indicator Plate17Rear Main Bearing Bushing
2Screw18Seal
3Stroke Indicator Backplate19Split Shrink Disc
4Seal20Main Gear
5Front Bearing Housing21Screw
6Screw22Crankshaft Sprocket
7Front Main Bearing Bushing23Screw
8Crankshaft24Grease Fitting
9Connection Cap
10Bolt
11Connection Bushing
12Connection

Drive Assembly

1Driveshaft Front Cartridge15O-Ring
2Screw16Quill Seal Cartridge
3Gasket17Screw
4Snap Ring18O-Ring
5Bearing19Seal
6Snap Ring20Bearing
7Driveshaft Front Cartridge21Flywheel
8O-Ring22Clutch-Brake
9Snap Ring23Screw
10Bearing24Rotary Union
11Snap Ring25Quill Plate
12Seal26Screw
13Quill27Frame/Gearbox Housing (Ref)
14Screw
