SERIES AA H - FORM A-25

Overview

Series AA H – Form A-25 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Parts List

When ordering specify complete part name. Parts common to Series AA and Series H presses.

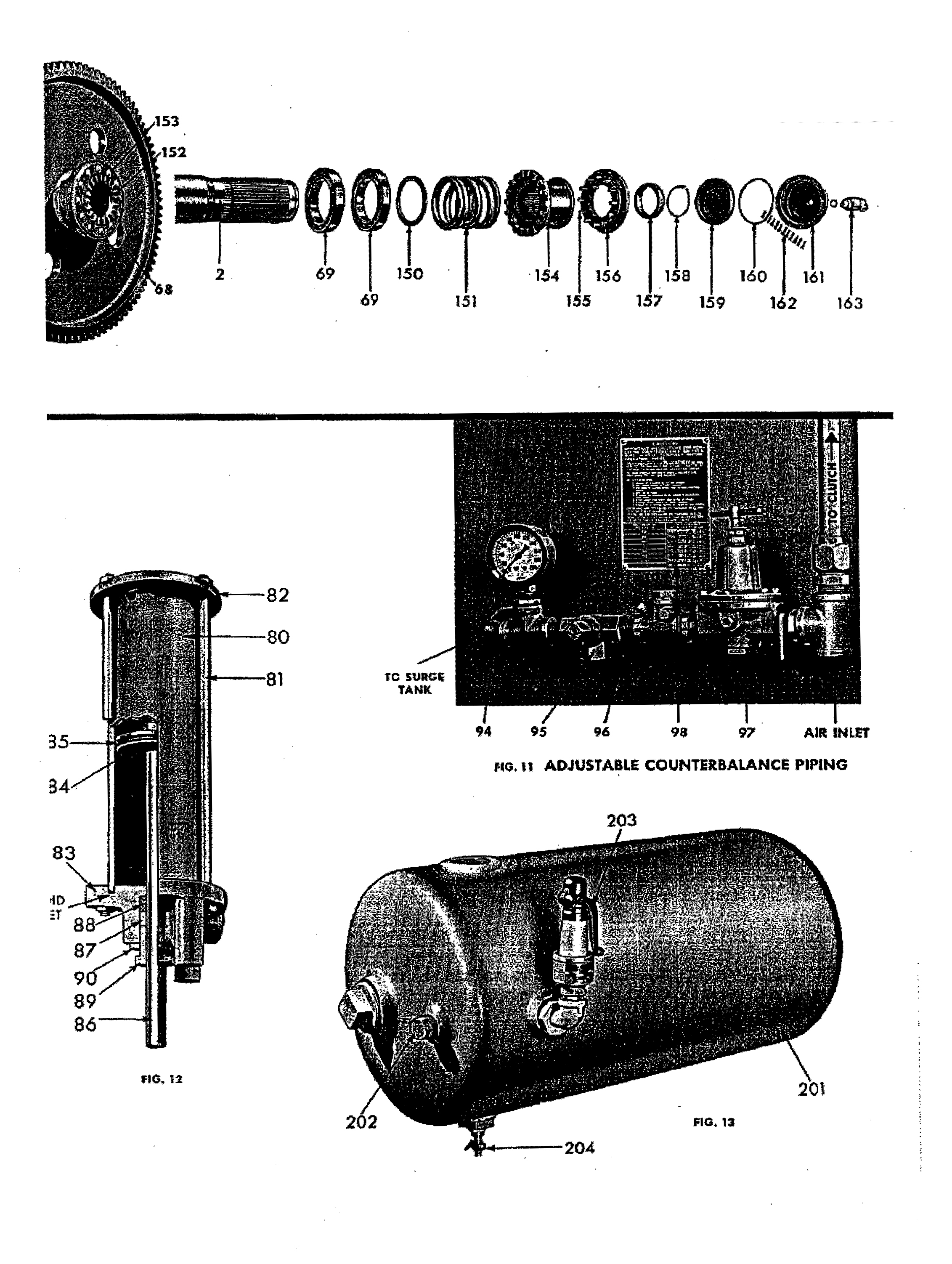

PRESSSLIDE COUNTERBALANCE
2Crankshaft (Specify stroke)80Counterbalance Cylinder
3L.H. Main Bearing Cap81Counterbalance Tie Rod
*4L.H. Floating Bushing (when used)82Counterbalance Cylinder Cover
5R.H. Main Bearing Cap83Lower Cylinder Cap
*6R.H. Split Bushing (when used)84Counterbalance Piston
7Connection Cap85Counterbalance Piston Packing
8Connection (Advise if special long stroke)86Counterbalance Piston Rod
*9Connection Bushing (when used)87Bronze Sleeve in Part No. 83
10Connection Clamping Studs88Stuffing Box Packing in Part No. 83
11Ball Connection Screw89Stuffing Box Compression Nut
12Slide (Advise if special flanged slide)90Jam Nut for Part No. 89
13Breech Block Die Clamp
14Breech Block Clamping StudsADDITIONAL PARTS FOR ADJUSTABLE COUNTERBALANCE
15Shims for Ball Connection Cap91Counterbalance Surge Tank (For appearance see Part No 201)
16Ball Connection Cap92Fusible Plug for Surge Tank (For appearance see Part No. 202)
17Knockout Bar93Safety Valve for Surge Tank (For appearance see Part No. 203)
18Knockout Stud94Pressure Gage
19Knockout Set Screw95Threeway Exhaust Valve
20Gib96Swing Check Valve
21Bolster Plate97Pressure Regulator
22Bolster Bolts98Instruction Plate
BACKSHAFTELECTRO-PNEUMATIC CLUTCH
50Backshaft150Clutch Spring Washer
*51L.H. Backshaft Bearing151Clutch Spring
52L.H. Bearing Housing152Clutch Wheel Face
*53L.H. Bearing Cover 153Clutch Wheel Face Bolts
*54R.H. Backshaft Bearing154Clutch Sleeve
*55R.H. Bearing Housing155Push Pins
156Cylinder Support
DRIVE157Cylinder Support Washer
60Flywheel158Clutch Snap Ring
61V Belts159Clutch Piston
62Motor Sheave160Clutch Piston "O" Ring
63Motor 161Clutch Cylinder
64Motor Plate162Clutch Cylinder Bolts and Lock Washers
65Motor Bracket163Rotary Air Seal
66Motor Bracket Hinge Pin164Clutch Hose Assembly
67Belt Guard165Airline Filter
68Clutch Gear or Wheel166Airline Lubricator
69Clutch Gear Bearings167Check Valve
70Gear Guard168Clutch Surge Tank
71Guard Plate168aFusable Plug
168bDrain Petcock
*Not Illustrated

Parts List (Cont.)

When ordering specify complete part name. Parts common to Series AA and Series H presses.

ELECTRICAL CONTROL
170Clutch Control (Advise full name plate data from plate inside cabinet and also wiring diagram number)182Brake Spring Pot
171Solenoid Valve (Parts list furnished on request)183Brake Spring
172Operating Palm Buttons184Brake Piston
172aPalm Button Housing185Piston "U" Ring Packing
173Limit Switch Bracket186Formica Bushing
174Limit Switch Cam187Brake Lever Arms
175Limit Switch188Brake Shoe
176Limit Switch Connection Rod189Brake Shoe Lining
177Connecting Rod Yoke and Pin190Tubular Rivet for Brake
178Bell Crank191Brake Pivot
179Bell Crank Cam Roller and Pin192Pivot Spacer
193Short Brake Shoe Pin
AIR RELEASING BRAKE194Long Brake Shoe Pin
180Brake Collar195Short Brake Shoe Spacer
181Brake Air Cylinder Head196Long Brake Shoe Spacer
197Trunion
198Cylinder Drain Petcock

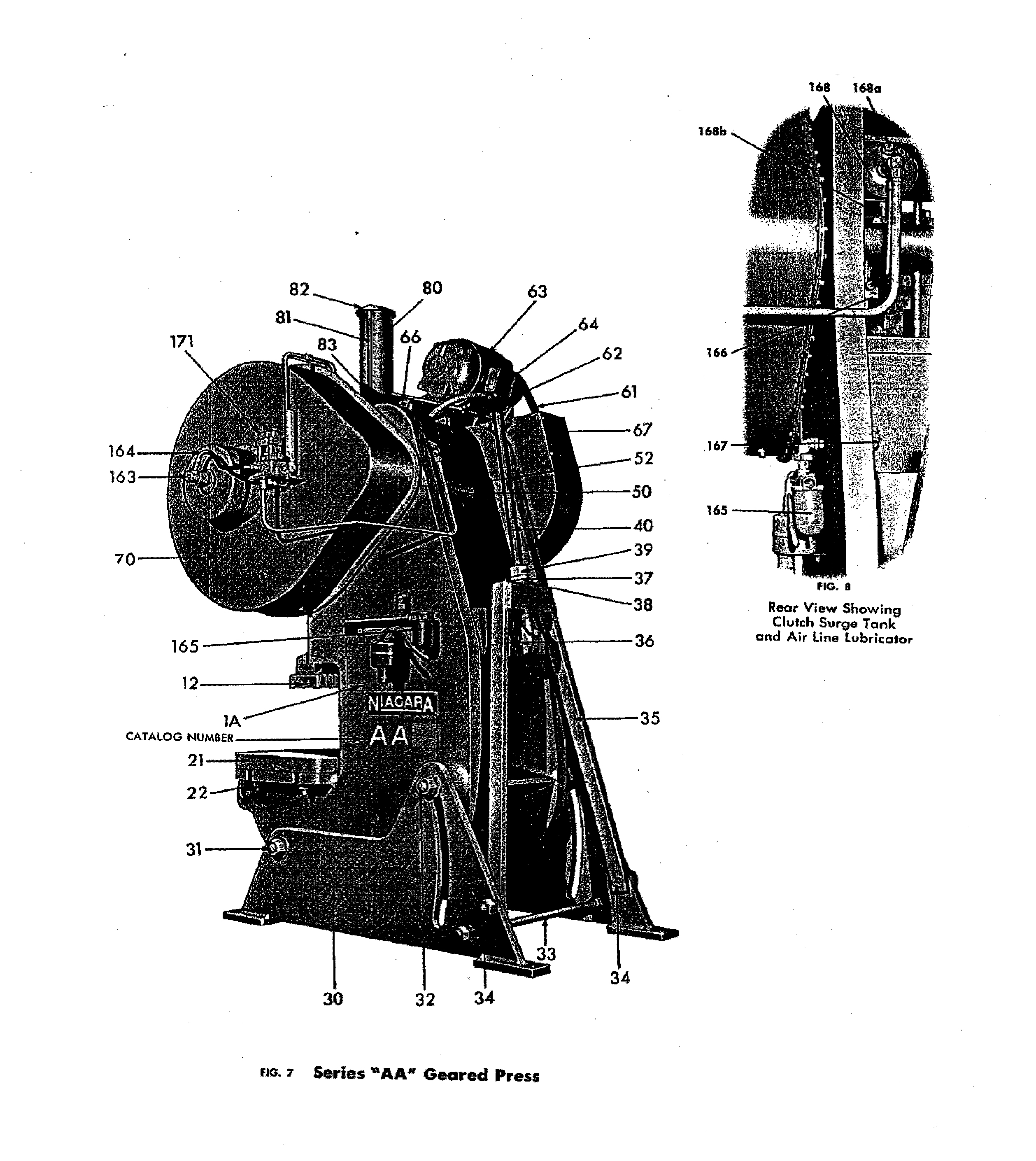

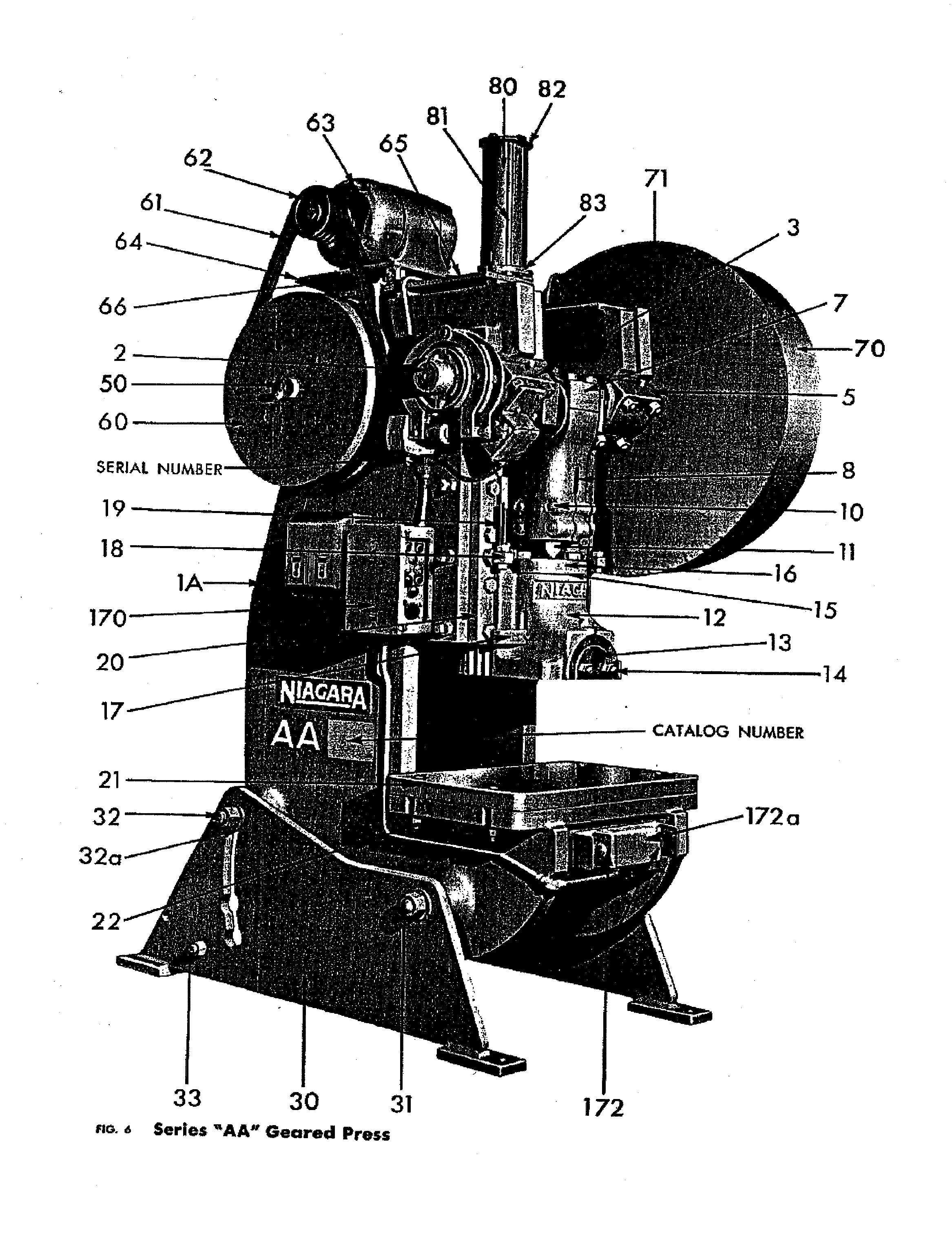

PARTS FOR SERIES "AA" PRESSES ONLY:
PRESS
1A. Frame
LEGS AND INCLINING DEVICESINGLE CUSHION
30LegA1-1Cylinder
31Pivot Stud for LegA1-2Cylinder Head
32Rear Stud for LegA1-3Piston
32aInclining Locking Collar for LegA1-4Piston Packing
33Tie Rod for LegsA1-5Piston Rod
34Stud for Inclining BracketA1-6Pressure Plate
35Inclining Bracket*A1-7Piston Locknut
36Pin for Inclining ScrewA1-8Cylinder Tie Rod
37Thrust Bearing for Inclining Screw (when used)A1-9Oil Lubrication Fitting
38Washer for Inclining Screw (when used)
39Nut for Inclining ScrewTANDEM CUSHION
40Inclining ScrewA2-1Upper Cylinder
A2-2Lower Cylinder
DRAW CUSHIONSA2-3Upper Piston
(When ordering cushion parts always give cushion serial number)A2-4Lower Piston
200Cushion Mounting Tie RodsA2-5Piston Rod
201Cushion Air TankA2-6Pressure Plate
202Fusible Plug*A2-7Lower Piston Locknut
203Safety Valve for Surge TankA2-8Cylinder Tie Rod
204Drain PetcockA2-9Oil Lubrication Fitting
205Threeway Exhaust ValveA2-10Piston "U" Ring Packing
206Horizontal Swing Check ValveA2-11Piston Rod "U" Ring Packing
207Pressure GageA2-12Vellumoid Gasket
208Pressure RegulatorA2-13Cylinder Mounting Plate
209Globe Valve*A2-14Upper Piston Retaining Sanp Ring
The above parts are used with both Single and Tandem cushions.

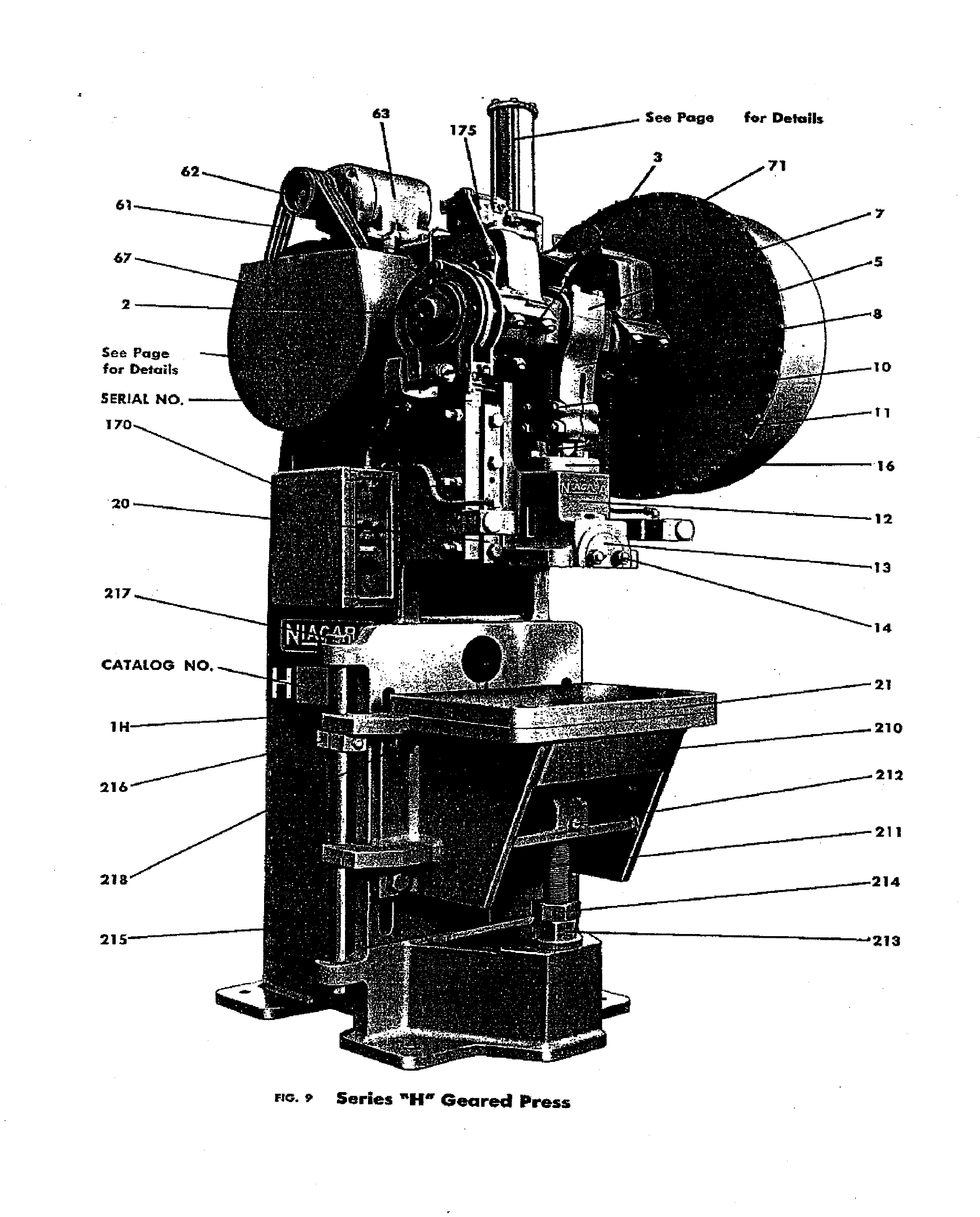

PARTS FOR SERIES "H" PRESSES ONLY:
PRESS
1HFrame215Swing Shaft
216Clamping Collar
ADJUSTABLE BED217Collar
210Table218Clamping Bolts
211Adjusting Screw
212Locking ScrewHORN
213Flanged Nut*219Horn
214Lock Nut*220Clamping Plate
*221Key
*Not illustrated*222Horn Cap Screws
