SERIES ONE FORM C-2-G

Overview

Series One Form C-2-G specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

MODELS 18, 110, 1R4 TO 1R10

When ordering parts always give the catalog and serial number of the shear. The serial number is stamped at or near the front left corner of the bed and also on the metal lubrication plate. Be sure to use complete names of parts listed for positive identification.

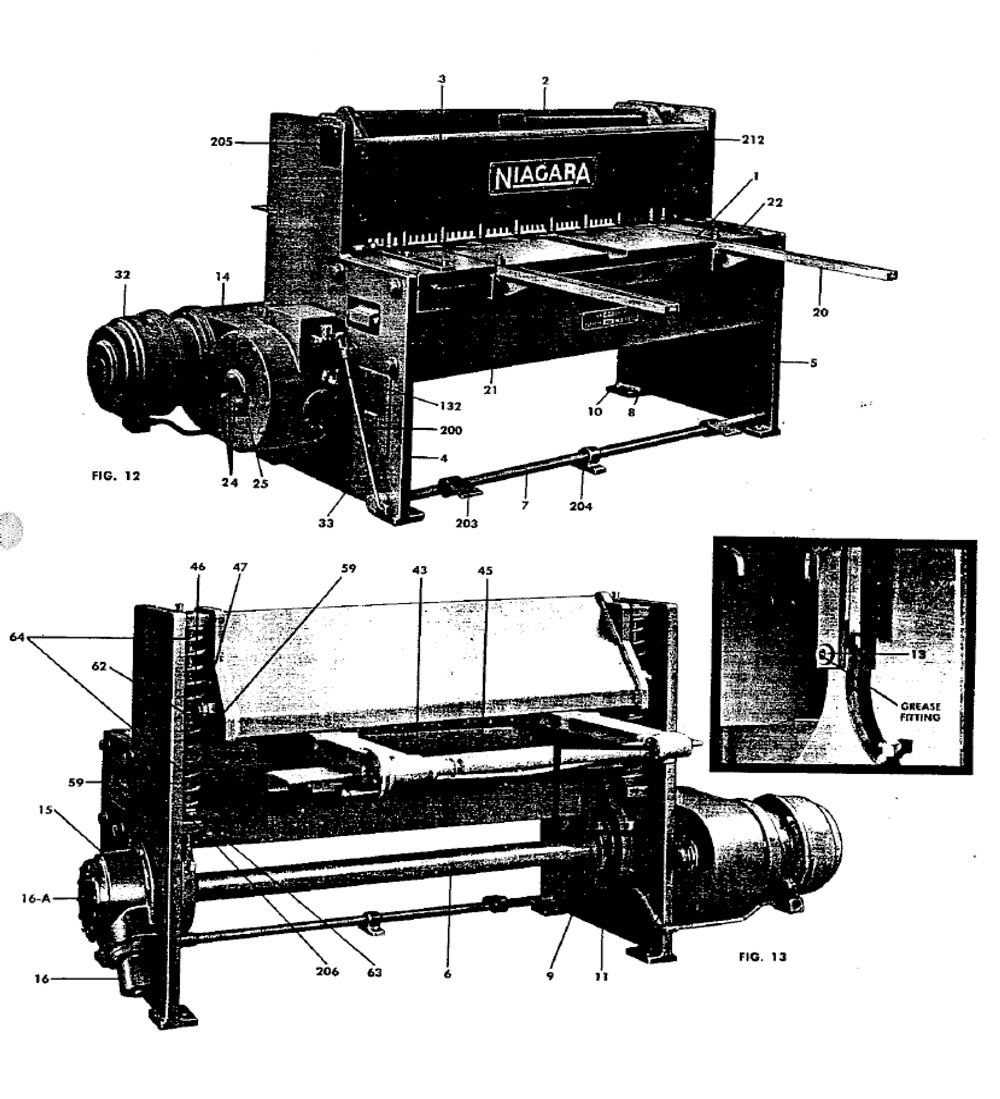

Part Nos. for Figs. 10, 11, 12 and 13 contd.

33Treadle Connection64Counterbalance Springs
43Lower Knife132Locking Bar Handle
44Upper Knife200Starter
45Knife Plow Bolts201Holddown Plunger
46Crosshead Brace Rod201AHolddown Plunger Spring
47Crosshead Brace Rod Adjustment Nut202Holddown Lifiting Adjustment Screws
49Back Gage Squaring Shaft203Treadle Foot
59Counterbalance Spring Rod204Treadle Rod Support
62Center Counterbalance Spring Washer205Lubrication Plate
63Lower Counterbalance Washer211Holddown Locknuts
212Holddown Retainer Screws
206Jam Nut
*Not Illustrated

ECCENTRIC SHAFT, HOLDDOWN, DETENT BRAKE

FIG. 14-ECCENTRIC SHAFT (Illustration typical by not exact in detail)

6Eccentric Shaft
8R.H. Eccentric
9L.H. Eccentric
10Crosshead Eccentric Straps
12Crosshead Wrist Pins
30Clutch Gear
31Cover Bearing
40Detent Cam
140Single Stroke Cam
141Clutch Sleeve
143Locknut
143ALockwasher
144Clutch Sleeve Spring
213Spacer

FIG. 15 HOLDDOWN
For models 18, 110, 1R4 to 1R10 (rear view)

3Holddown
36Holddown Foot
37Holddown Spring
38Knife Guard
174Holddown Foot Retaining Nut
207Holddown Lifting Bar

FIG. 16-DETENT BRAKE

16Detent Spring Pot
40Detent Cam
40ADetent Cam Housing Washer
66Detent Cam Roller
67Detent Cam Lever
67ADetent Lever Pin
68Detent Spring
69Detent Spring Plunger
69ADetent Plunger Stem
177Detent Cam Roller Bearings
178Detent Cam Roller Snap Rings

LATCH BRACKET & GEAR BOX

FIG. 17-LATCH BRACKET (Illustration typical but not exact in detail)

102Cam Roller Shaft121Spacing Collar
103Cam Lever122Throwout Shaft Lock Nut
104Cam Lever Pin123Latch Spring Pin
105Selector Knob Spring124Bell Crank Pin
106Single Stroke Selector Knob125Bell Crank
107Throwout Spring126Latch Spring
108Throwout Pin127Lock Washer
109Latch Hinge Pin128Throwout Shaft Collar Nuts
111Latch 129Treadle Spring Plunger
112Throwout Key130Treadle Spring
113Throwout131Locking Bar Indicator
114Throwout Bearing Ball132Locking Bar Handle
115Throwout Bearing Needle133Throwout Housing Cap Screw
116Selector Knob Pin134Throwout Housing
117Sliding Pin135Locking Bar
118Throwout Shaft136Locking Bar Spring
119Throwout Housing End Cover137Locking Bar End Collar
120End Cover Cap Screw138Cam Roller

FIG 18-GEAR BOX (Illustration typical but not exact in detail)

14Gear Box144Clutch Sleeve Spring
24Cover Bolts and Nuts150Clutch Wheel Face
25Gear Box Cover151Clutch Face Bolt and Nut
26Flywheel152Inner Clutch Gear Bearing
27Drive Shaft153Clutch Gear Bearing Spacer
27ASplined Motor Coupling154Intermediate Shaft Bearings
28Intermediate Shaft155Locknut and Washer
29Intermediate Gear and Pinion Cluster157Oil Catcher and Bearing Retainer
30Clutch Gear158Pinion Shaft Flywheel Bearing
31Cover Bearing160Intermediate Shaft Bearing Spacer
33ATreadle Connecting Link161Oil Level Elbow
33BUpper Treadle Lever162Pinion Shaft Bearing
42Motor Adapter Flange164Locknut and Washer
140Single Stroke Cam165Single Stoke Cam Cover
141Clutch Sleeve166Pinion Shaft Bearing Cover
142Outer Clutch Gear Bearings167Eccentric Shaft Bearing
143Locknut168Inspection Cover
143ALockwasher170Treadle Lever Bracket
171Treadle Lever Pin
213Spacer

SINGLE BRACKET BACK GAGE & EXTENSION SQUARING GAGE

FIG 19-SINGLE BRACKET BACK GAGE

17Back Gage Bar
18Single Bracket
21Back Gage Handwheel
47King Pin Bolt and Nut
48Back Gage Brace Rod
52Handwheel Scale
53Bracket Scale
56Handwheel Nut
57Single Bracket Back Gage Adjusting Screw
*58Single Bracket Back Gage Slide
84Handle
86Knob
208Set Screws
209Mounting Screws
210Dowel
*Not Illustrated

FIG. 20-EXTENSION SQUARING GAGE

34Squaring Gage Support
34AAdjustable Scale
35Adjustable Stop
175Leg
176Squaring Gage

BACK GAGE

17Back Gage Bar80Bevel Gears for Adjusting Screws
19Left Hand Back Gage Bracket81Retainer Bushings
20Right Hand Back Gage Bracket82Nuts for Retainer Bushings
21ABack Gage Handwheel83Coupling Gear
48Back Gage Brace Rod84Handle
49Back Gage Squaring Shaft85Locking Pin
50Back Gage Sleeve 86Knob
51Locking Sleeve Scale87Ring for Left Hand Gear Case
52Handwheel Scale88Spacing Collar for Left Hand Shaft
53Bracket Scale89Bolt for Connecting Shaft
54Back Gage Adjusting Screw Indicator Nut90Stop Pins
55Woodruff Key for Locking Sleeve91Spring for Coupling Sleeve
56Handwheel Nut92Double Bearings for Adjusting Screws
70Right Hand Gear Case93R.H. Bearing for R.H. Shaft
71Left Hand Gear Case94L.H. Bearing for R.H. Shaft
72Slides95R.H. Bearing for L.H. Shaft
73Indicator Nut96L.H. Bearing for L.H. Shaft
74Bracket Dowels97Nut for Left Hand Shaft
75Right Hand Adjusting Screw98Lockwashers for Adjusting Screws
76Left Hand Adjusting Screw99Locknuts for Adjusting Screws
77Shaft for Right Hand Gear Case*100Handle Spring
78Shaft for Left Hand Gear Case
79Bevel Gears for Gear Case
*Not Illustrated
