SERIES HD 175 to 300 TON - FORM B-9-C

Overview

Series HD 175 to 300 Ton – Form B-9-C specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

HD-200 FRAME

1Manifold, Motor & Pump Assembly41"T" Nut
2Oil Sight Gage42Capscrew
3Reservoir Cover43Washer
4Gasket44Nut
5Frame45Stud
6Capscrew46Capscrew
7Capscrew47Adjusting Block
8Capscrew48Inner Pivot Block
9L.H. Outside Gib49Pivot Block Retainer
10Gib Liner50Washer
11Screw51Bolt
12L.H. Cylinder (R.H. Same)52Inner Pivot Shoe
13Filler Block53Outer Pivot Shoe
17Bed (Detachable Type)54Outer Pivot Block
18Capscrew (With Detachable Type Bed Only)55Stud
19Bolt (With Detachable Type Bed Only)56Nut
20Bed Shoe Lock (With Detachable Type Bed Only)60Gib Liner
21Bed Shoe (With Detachable Type Bed Only)61R.H. Outer Gib
22Capscrew (With Detachable Type Bed Only)62Capscrew
31R.H. Ram Liner63Control Box
32Ram64Washer
33Safety Rail65Bolt
34Bolt66Retaining Ring
35Pillow Block67Pin
36Bolt68ClevisClean Out
37Center Ram Clamp Bars69"O" RingCover Kit
38Spring70Inspection DoorPurchased
39End Ram Clamp Bars71WasherAs Assembly
40R.H. Ram Liner72Bolt

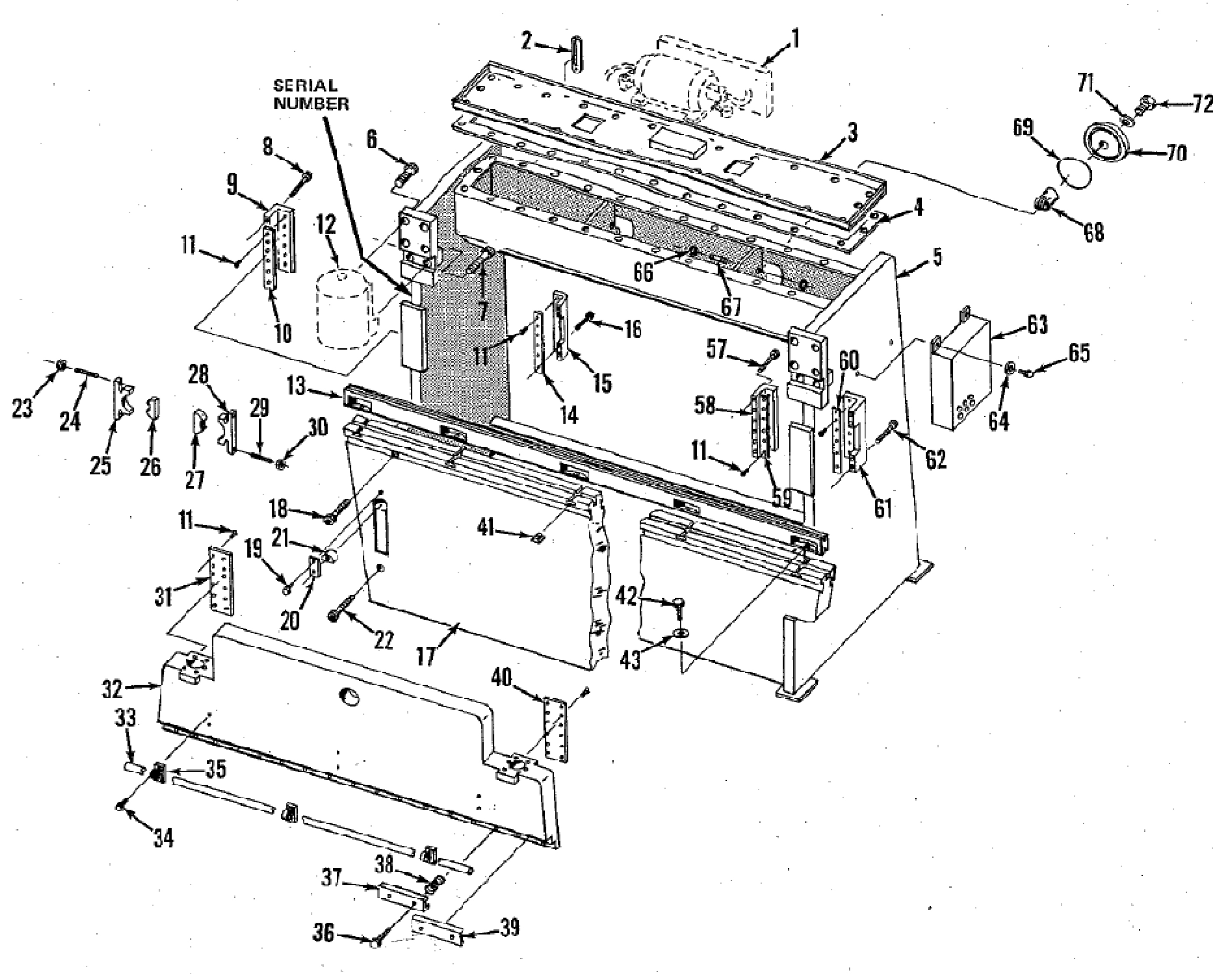

HD-300 FRAME

1Manifold, Motor & Pump Assembly32Ram
2Oil Sight Gage33Safety Rail
3Reservoir Cover34Bolt
4Gasket35Pillow Block
5Frame36Bolt
6Capscrew37Center Ram Clamp Bars
7Capscrew38Spring
8Capscrew39End Ram Clamp Bars
9L.H. Outside Gib40R.H. Ram Liner
10Gib Liner41"T" Nut
11Screw42Capscrew
12L.H. Cylinder (R.H. Same)43Washer
13Filler Block57Capscrew
14Gib Liner 58R.H. Inner Gib
15L.H. Inner Gib59Gib Liner
16Capscrew60Gib Liner
17Bed (Detachable Type)61R.H. Outer Gib
18Capscrew (With Detachable Type Bed Only)62Capscrew
19Bolt (With Detachable Type Bed Only)63Control Box
20Bed Shoe Lock (With Detachable Type Bed Only)64Washer
21Bed Shoe (With Detachable Type Bed Only)65Bolt
22Capscrew (With Detachable Type Bed Only)66Retaining Ring
23Nut67PinClean Out
24Stud68ClevisCover Kit
25Outer Pivot Shoe Retainer69"O" RingPurchased
26Outer Pivot Shoe 70Inspection DoorAs Assembly
27Inner Pivot Shoe71Washer
28Inner Pivot Shoe Retainer72Bolt
29Stud
30Nut
31R.H. Ram Liner

MAIN CYLINDER

1Test Gage
2Bleeder Valve
3Socket
4Plug
5Nipple
6Reducer
7Cylinder
8Piston
9Piston Rings
10Bushing
11"O" Ring
12Cylinder Cap
13Capscrew
14"V" Packing
15Wiper Cord
16Packing Gland
17Capscrew
18Capscrew
19Ballcap
20Lock
21Capscrew
22Shim
23Ballscrew
24Ballseat
25Ram

RAM LEVEL CONTROL

1Capscrew24Grease Fitting
2Valve25Collar**
3Sub Plate26Set Screw**
4Valve Bracket27R.H. Pulley
5Dowel28Pulley Shaft**
6Bolt29Ram
7Capscrew30Tape Adjustment Screw
8Micro Switch31Set Screw
9Capscrew32Pin & Knob
10Micro Switch Plate33Screw Housing
11Micro Switch Bracket34Tilt Adjust Scale
12Nut35Screw
13Capscrew36Bearing
14Micro Switch Trip37Adjusting Knob
15Tape Holder38Bracket Support
16Tape Clamp39Tilt Adjust Bracket
17Capscrew40Bolt
18Tape41Bolt
19Grease Fitting*Purchased Together
20Collar***Purchased Together
21Set Screw*
22L.H. Pulley
23Pulley Shaft*

UPPER AND LOWER LIMIT ASSEMBLY

1R.H. Outer Gib26Shaft
2Dovetail Bolt27Bevel Gear
3Speed Change Cam28Counter Plate
4Knurled Nut29Screw
5Upper Gage Rod Bracket30Button Head Screw
6Capscrew31Bushing
7Set Screw32Roll Pin
8Bushing33Bevel Gear
9Upper Stop Block34Gear Cover
11Clamp Bolt35Screw
12Clamp Nut36Roll Pin
13Handle37Handle
14Knob38Counter
15Screw39Roll Pin
16Gage Rod40Bevel Pinion
17Roll Pin41Limit Switch (Speed Change)
18Lower Stop Block42Screw
19Lower Gage Rod Bracket43Bracket Support
20Bushing44Limit Switch Mounting Plate
21Set Screw45Bolt
22Capscrew46Limit Switch (Bottom Limit)
23Bevel Pinion47Limit Switch (Top Limit)
24Bushing48Screw
25Roll Pin

HEAVY DUTY BACKGAGE MANUALLY OPERATED

1Handle36Retaining Ring
2Collar37Sprocket
3Spacer38Chain
4Helical Gear39Backgage Screw
5Spacer40Woodruff Key
6Shaft41Backlash Plate
7Key42Disc Springs
8Bolt43Screw
9Flange Block44Finger Rest Support Bracket
10Flange Block45Stud
11Bolt46Clamping Handle
12Key47Rear Stop Plate
13Retaining Ring48Bearing
14Sprocket49Shaft
15Retaining Ring50Retaining Ring
16Counter Bracket51Ball Bushing
17Counter Cover52Capscrew
18Screw53Retaining Ring
19Counter Cover54Capscrew
20Counter Shaft55Elevating Screw
21Retaining Ring56Thrust Bearing
22Helical Gear57Knurled Nut
23Dovetail Bolt58Finger Rest
24Washer59Washer
25Stud60Spring
26Nut61Shouldered Capscrew
27Support Plate62Chain
28Lock Nut63Roll Pin
29Lock Washer64Sprocket
30Bearing Nut65Drive Tightener
31Bearing 66Dovetail Bolt
32Bearing 67Finger Support
33Set Screw68Backgage Finger
34Capscrew69Washer
35Nut70Nut
71Bed

HEAVY DUTY BACKGAGE POWER OPERATED

16Counter Bracket41Backlash Plate66Dovetail Bolt
17Counter 42Disc Springs67Finger Support
18Screw43Screw68Backgage Finger
19Counter Cover44Finger Rest Support Bracket69Washer
20Counter Shaft45Stud70Nut
21Retaining Ring46Clamping Handle71Bed
22Helical Gear47Rear Stop Plate72Sprocket
23Dovetail Bolt48Bearing 73Chain
24Washer49Shaft74Bracket
25Stud50Retaining Ring 75Hydraulic Motor
26Nut51Ball Bushing76Bolt
27Support Plate52Capscrew77Bolt
28Lock Nut53Retaining Ring 78Screw
29Lock Washer54Capscrew79Washer
30Bearing Nut55Elevating Screw80Shaft
31Spacer56Thrust Bearing81Key
32Bearing 57Knurled Nut82Spacer
33Set Screw58Finger Rest 83Helical Gear
34Capscrew59Washer84Spacer
35Nut60Spring85Bushing
36Retaining Ring61Shouldered Capscrew86Bushing
37Sprocket62Chain87Collar
38Chain63Roll Pin88Key
39Backgage Screw64Support89Sprocket
40Woodruff Key65Drive Tightener90Roll Pin

STANDARD BACKGAGE

10Dovetail Bolt
11Backgage Base
12Lockwasher
13Locknut
14Bracket
15Dovetail Bolt
18Nut
22Finger Support
23Finger

MICROMETER BACKGAGE

10Dovetail Bolt
11Backgage Base
12Lockwasher
13Locknut
14Bracket
15Dovetail Bolt
16Micrometer Stud
17Micrometer Support
18Nut
19Micrometer Nut
20Jam Nut
21Hex HD Cap Screw
22Finger Support
23Finger
