C-75 and C-110 Service Manual
Overview
C-75 and C-110 Service Manual information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

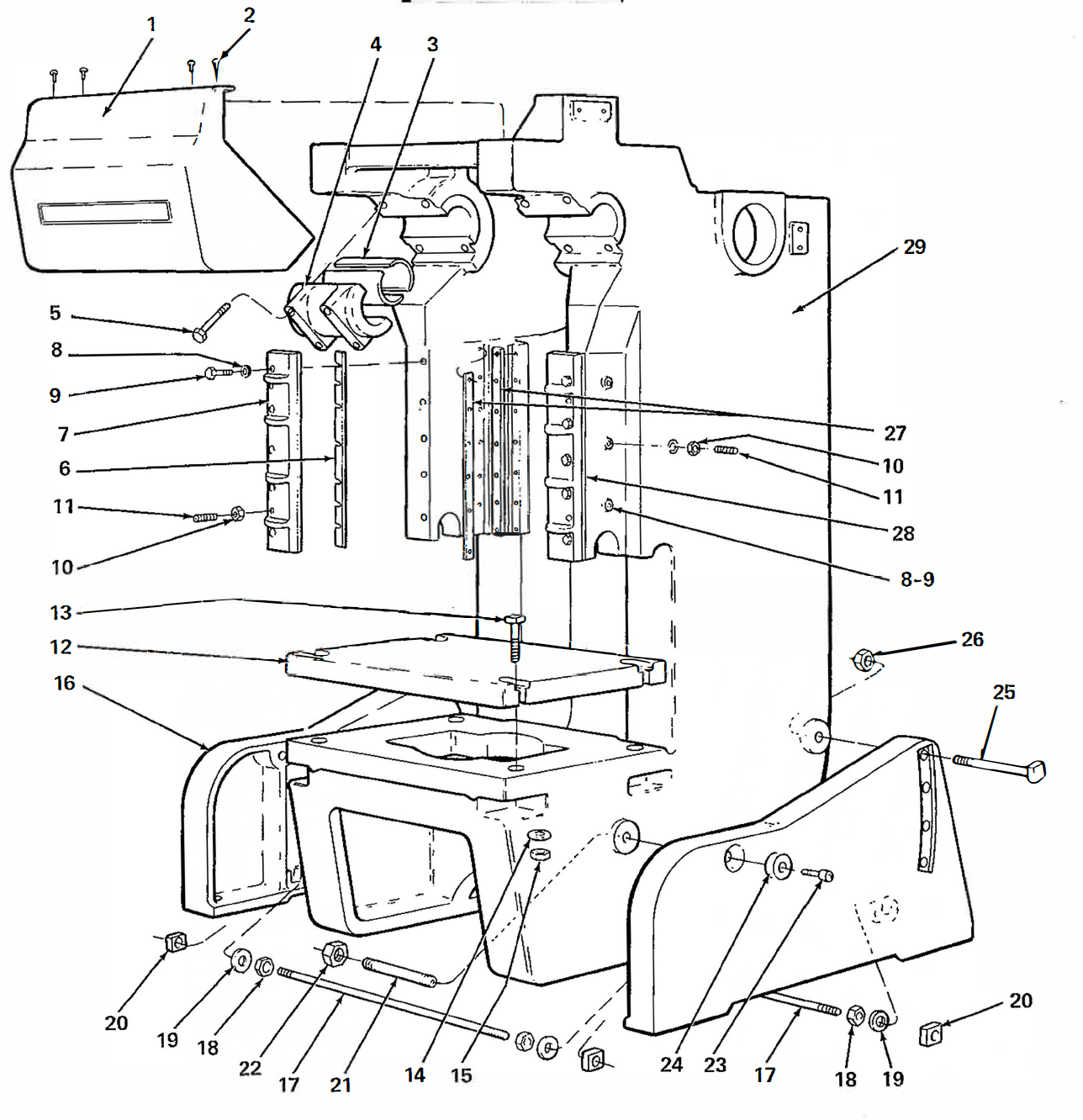

| 1 | Front Cover | 16 | Leg |
| 2 | Socket Head Cap Screw | 17 | Tie Rod |
| 3 | Half Bushing Head (Main) | 18 | Hex Nut |
| 4 | Main Bearing Cap | 19 | Washer (Plain) |
| 5 | Hex Head Cap Screw | 20 | Square Nut |
| 6 | Shim, Laminated | 21 | Stud |
| 7 | Gib | 22 | Nut |
| 8 | Lockwasher | 23 | Socket Head Cap Screw |
| 9 | Hex Head Cap Screw | 24 | Washer |
| 10 | Hex Nut (Jam) | 25 | Rear Leg Bolt |
| 11 | Socket Head Set Screw | 26 | Hex Nut |
| 12 | Bolster | 27 | Wear Strip |
| 13 | Bolster Bolt (J.I.C.) | 28 | Shim, Laminated |
| 14 | Washer | 29 | Frame |
| 15 | Hex Nut |

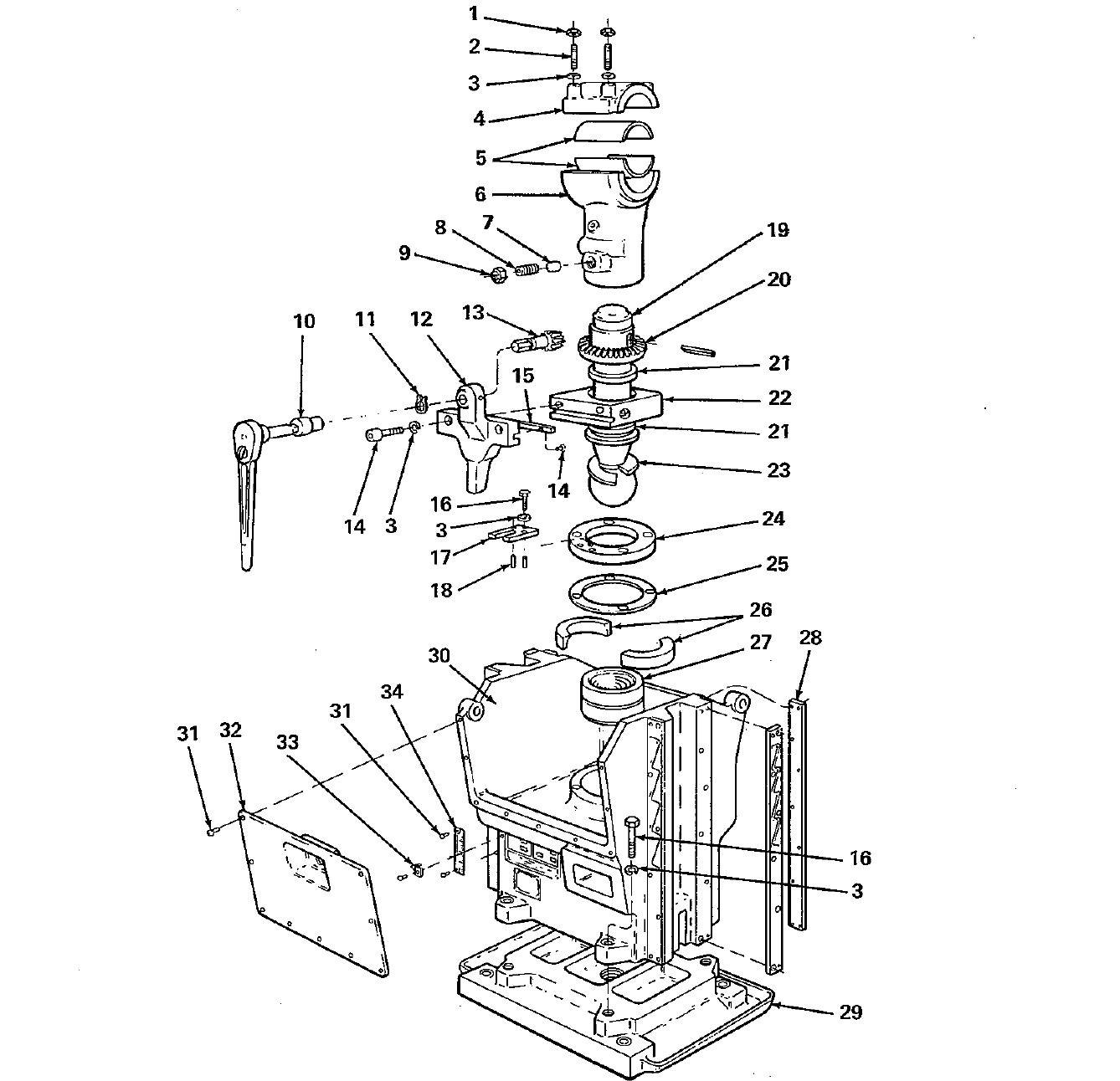

| 1 | Hex Nut | 18 | Dowel Pin |
| 2 | Stud | 19 | Screw, Connection |
| 3 | Lock Washer | 20 | Bevel Gear |
| 4 | Cap Connection | 21 | Thrust Bearing |
| 5 | Bushing, Half | 22 | Adjustment Bracket |
| 6 | Sleeve, Connection | 23 | Dust Seal |
| 7 | Plug, Clamping | 24 | Ball Cap |
| 8 | Socket Head Set Screw | 25 | Plastic Shims |
| 9 | Hex Half Nut | 26 | Bushing, Ball Cap |
| 10 | Wrench Assembly | 27 | Bushing, Ball Seat |
| 11 | Retaining Ring | 28 | Liner |
| 12 | Pinion Bracket | 29 | Slide Flange |
| 13 | Bevel Pinion | 30 | Slide |
| 14 | Socket Head Cap Screw | 31 | Button Head Screw |
| 15 | Key | 32 | Front Cover |
| 16 | Hex Head Cap Screw | 33 | Scale |
| 17 | Fork | 34 | Pointer |
| 1 | Flywheel (Non-Geared Press) | 13 | Bearing Retainer |
| 2 | Clutch | 14 | Bearing Housing |
| 3 | Crank Shaft | 15 | Bearing |
| 4 | Main Gear | 16 | Bearing Retainer |
| 5 | Drilled Head Hex Cap Screw | 17 | Spacer |
| 6 | End Cap | 18 | Flywheel (Geared Press) |
| 7 | Key | 19 | Drive Shaft |
| 8 | Pinion Gear | 20 | Bearing Retainer |
| 9 | Hex Head Cap Screw | 21 | Bearing |
| 10 | Lockwasher | 22 | End Cap |
| 11 | Bearing Housing Flange | 23 | Drilled Head Cap Screws |
| 12 | Spacer | 24 | Bearing Housing |
| 1 | Slide | 25 | Air Motor Bracket |
| 2 | Adjustment Fork | 26 | Strap |
| 3 | Bevel Gear | 27 | Air Motor |
| 4 | Connection Screw | 28 | Stop Arm |
| 5 | Flexible Shaft | 29 | Dowel |
| 6 | Nipple | 30 | Set Screw |
| 7 | Hex Head Cap Screw | 31 | Sprocket |
| 8 | Lock Washer | 32 | Anchor Block |
| 9 | Bracket | 33 | Pinion Bracket |
| 10 | Roll Pin | 34 | Pinion |
| 11 | Hex Nut | 35 | Adjustment Bloc |
| 12 | Washer, Plain | 36 | Bearing Bracket |
| 13 | Change Gear | 37 | Spring |
| 14 | Bracket | 38 | Lock Dog |
| 15 | Spur Gear | 39 | Change Gear |
| 16 | Dowel Pin | 40 | Sprocket |
| 17 | Drive Bracket | 41 | Cylinder |
| 18 | Bevel Pfoion and Shaft | 42 | Counter |
| 19 | Pinion Bearing Block | 43 | Elbow |
| 20 | Bevel Gear | 44 | Socket Button Head Screw |
| 21 | Elbow | 45 | Cover |
| 22 | Hose Assembly | ||
| 23 | Nipples | ||
| 24 | Pinion |
