TYPE R AIR FRICTION CLUTCH MODEL 254

Overview

Type R Air Friction Clutch Model 254 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

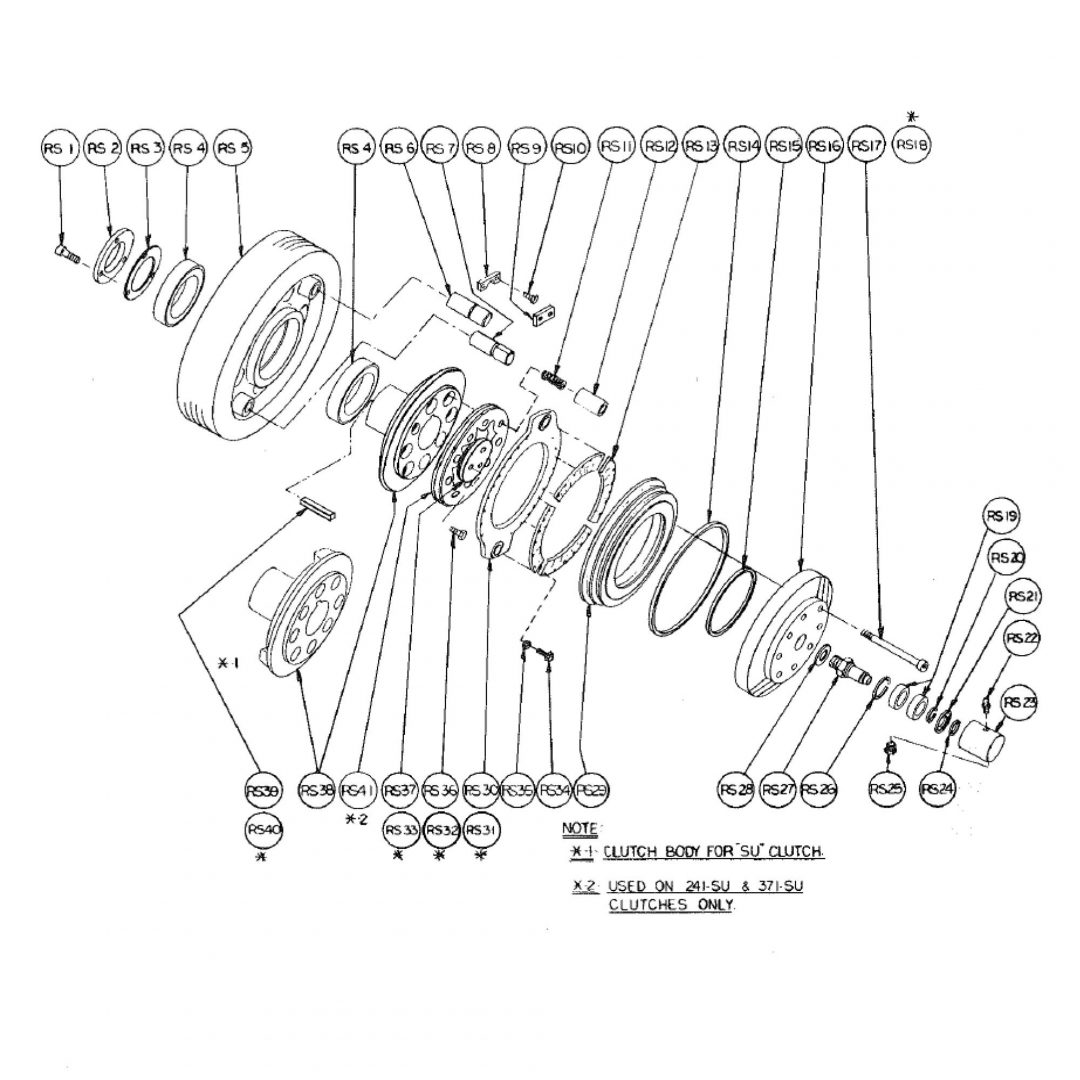

Type R Air Friction Clutch Model 254

Item NumberDescriptionQuanity254-R Mod.A Dec. 1961254-R Mod.B Jan. 1967254-R Mod.C Aug. 1970254-R Mod.D Nov. 1975
RS-1Bearing Collar Screw6 pcs.1314-3-0027-21314-3-0027-21314-3-0027-2
Bearing Collar Screw3 pcs.1314-3-0027-2
RS-2Bearing Collar1 pc.0043-2-0076-20043-2-0076-20043-2-0076-23380-B-1828-2
RS-3Fw. Bearing Shims
.003“ Thk.- Green2 pcs.0043-3-0162-20043-3-0162-20043-3-0162-23125-A-1124-2
.005“ Thk.- Blue2 pcs.0043-3-0161-20043-3-0161-20043-3-0161-23125-A-1125-2
.0075“ Thk.-Trans.2 pcs.0043-3-0160-20043-3-0160-20043-3-0160-23125-A-1126-2
RS- 4Flywheel Bearings
Timken Cup2 pcs.6150-0-1770-26150-0-1770-26150-0-1770-26150-0-1770-2
Timken Cone2 pcs.6151-0-2582-26151-0-2582-26151-0-2582-26151-0-2582-2
RS- 5Flywheel1 pc.Check RecordCheck RecordCheck RecordCheck Record
RS-6Friction Disc Pin - Round2 pcs.0042-2-0419-2
Friction Disc Pin - Round1 pc.0042-2-0419-20042-2-0419-20042-2-0419-2
RS-7Friction Disc Pin-Flat1 pc.0042-3-0467-20042-3-0467-20042-3-0467-2
RS-8Keeper Plate - Round2 pcs.0043-2-0247 -2
Keeper Plate-Round1 pc.0043-2-0247-20043-2-0247-20043-2-0247-2
RS- 9Keeper Plate - Flat1 pc.0042-3-0439-20042-3-0439-20042-3-0439-2
RS- 10Keeper Plate Screws4 pcs.1314-3-0012-21314-3-0012-21314-3-0012-21314-3-0012-2
RS-11Brake Springs4 pcs.6661-0-0157-26661-0-0157-26661-0-0157-26661-0-0157-2
RS- 12Drive Pins8 pcs. 0047-3-0068-20047-3-0068-20047-3-0068-20047-3-0068-2
RS- 13Clutch Linings8pcs.0042-1-0138-20042-1-0138- 20042-1-0138-20042-1-0138-2
RS- 14U- Packing-Outer1 pc.5920-0-0082-25920-0-0082 -25920-0-0082-25920-0-0082-2
RS-15U- Packing - Inner1 pc.5920-0-0053-25920-0-0053-25920-0- 0053-25920-0-0053-2
RS-16
Air Cylinder1 pc.0047-1-0041-20047-1-0183-23684-D-8524-23684-C-8525-2
RS-17Air Cylinder Bolts8 pcs.6326-0-0371-21314-3-0029-21314-3-0029-22013-A-9100-2
*RS-18Air Swivel Assembly1 pc.0048-1-0232-4
RS-19Swivel Ball Bearings2 pcs.2421-A-3113-22421-A-3113-2
Swivel Ball Bearing1 pc.2421-A-3113-22421-A-3112-2
Swivel Ball Bearing1 pc.2422-A-3713-22422-A-3712-2
RS-20Retainer Ring1 pc.Not UsedNot Used2125-A-0058-22125-A-0053-2
RS-21U- Packing1 pc.Not UsedNot UsedNot Used5920-0-0110-2
RS-22Alemite Fitting1 pc.2294-A-2101 -22294-A-2101-22294-A-2101-28393-0-0150-2
RS-23Housing1 pc.0043-2-0001-20043-2-0001-2Not Used0048-2-0233-2
RS-24Spacer Ring1 pc.Not UsedNot Used3318-A-6112-20048-3-0234-2
RS-25Reducer Bushing1pc2222-Z-4208-22222-Z-4208-22222-Z-4208-2Not Used
RS-26Retainer Ring1pcNot UsedNot UsedNot Used2125-Z-1039-2
RS-27Swivel Sleeve1pc 0043-2-0036-20043-2-0036-23369-A-9132-20048-2-0236-2
RS-28Sleeve Gasket1pc5840-0-0361-25840-0-0361-22311-A-2167-20048-3-0237-2
RS-29Air Cylinder Piston1pc0047-1-0050-20047-1-0050-20047-1-0050-20047-1-0050-2
RS-30Clutch Friction Disc Assembly1pc0043-2- 0298-43684-B-4230-43684-B-4230-43684-B-4230-4
*RS-31Clutch Friction Disc 1pc3491-B-3150-23491-8-3150-23491-B-3150-23491-B-3150-2
*RS-32Clutch Friction Disc Bush. -Round2 pcs.3341 - B- 6106-2
Clutch Friction Disc Bush.-Round1 pc.3341-B-6106-23341-B-6106-23341-B-6106-2
*RS-33Clutch Friction Disc Bush.-Flat1pc.3344-B- 9111-23344-B-9111-23344-B-9111-2
RS-34Clutch Lining Screws24 pcs. 2011-Z-1639-22011-Z-1637-22011-Z-1637-22011-Z-1637-2
RS-35Clutch LIning Screw Nuts24 pcs. 5815-0-0006-25815-0-0006-25815-0-0006-25815-0-0006-2
RS-36End Plate Screws4 pcs. 1314-3-0018-21314-3-0018-21314-3-0018-21314-3-0018-2
RS-37End Plate-(Crankshaft)1pc0043-2-0242-20043-2-0242-20043-2-0242-23286-A-3118-2
RS-38Clutch Body1pc0047-1-0082 -20047-1-0082-20047-1-0082-23684-D-8622-2
RS-39Shaft Key1pc5560-0-0450-25560-0-0450-25560-0-0450-25560-0-0450-2
