Torc-Pac 60

Overview

Torc-Pac 60 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Torc-Pac 60

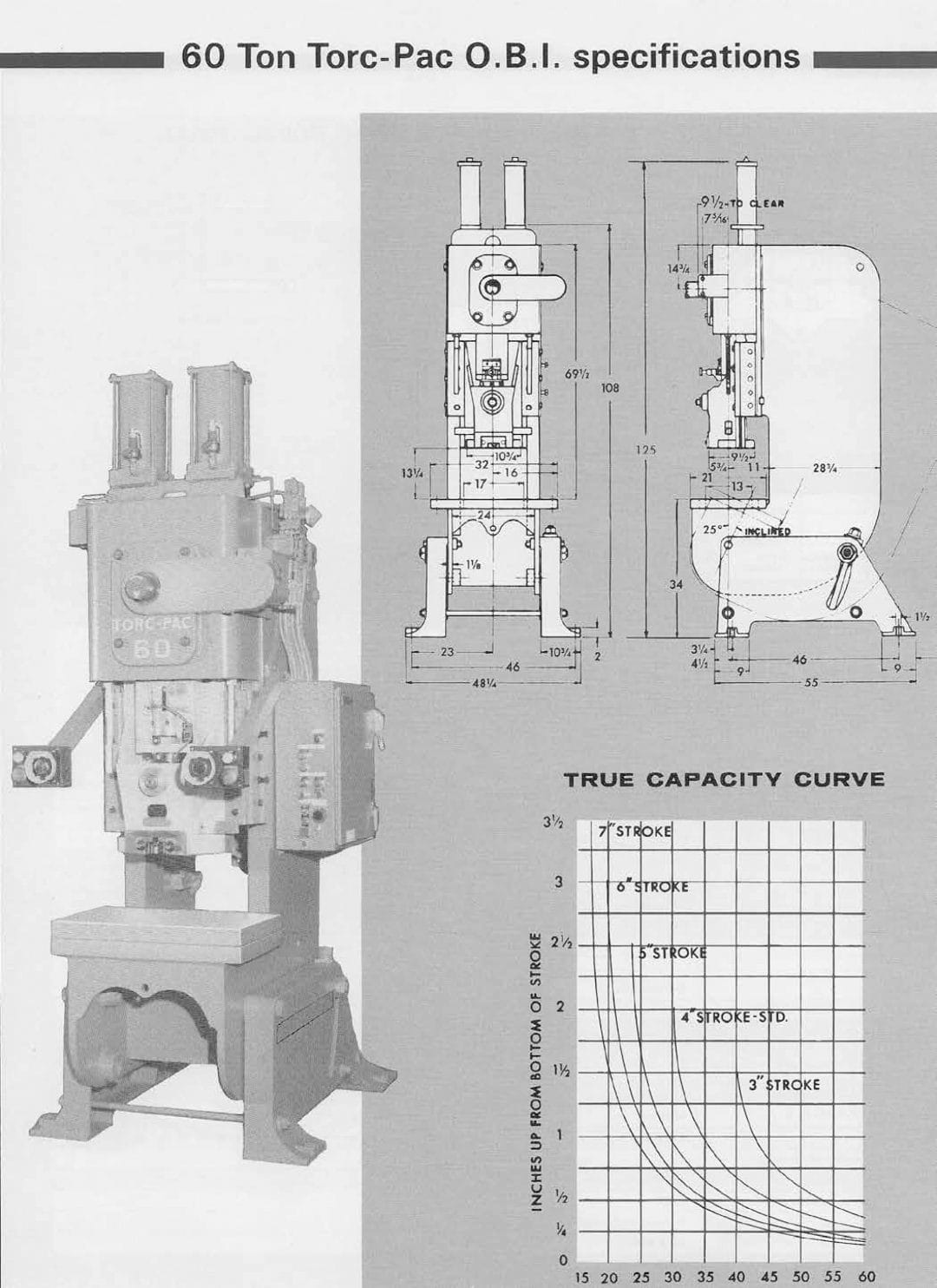

60-TON TORC-PAC PRESS SPECIFICATIONS
Capacity60 tons
Shaft diameterAt main bearings4 1/4" At Eccentric 9 3/8" (3", 4" & 5" strokes), 11 3/8" (6" & 7" strokes)

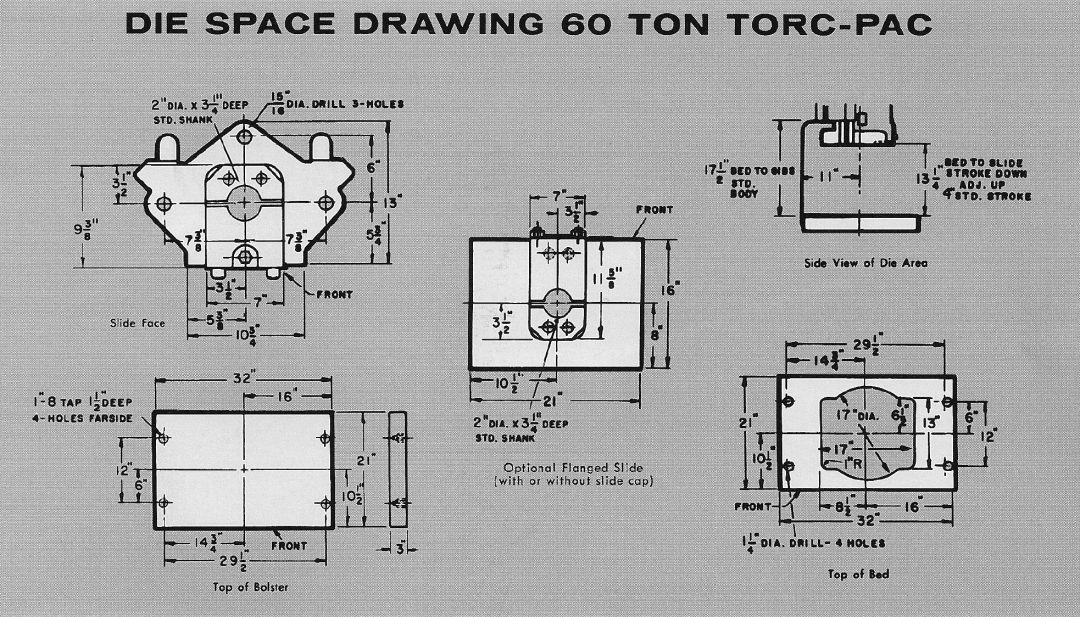

Bolster AreaL RX FBX thickness 32" x 21" x 3"
Bed opening LRXFB17" x 13"
Width through back19"
Depth of throat11" standard. 14" optional
Height108"; over counterbalance cylinder-125"
Basic overall dimensions (Std. frame)Width48 1/4"
FB upright62 1/4"
FB inclined69"
Strokes4" std. 3" opt. 5" opt. 6" opt. 7" opt.
Note: flanged ram reduces shut height by 3 3/4"
Shut heightStandard frame13 1/4" 14 1/4" 12 1/4" 11 1/4" 10 1/4"
Opt. high body17 1/4" 18 1/4" 16 1/4" 15 1/4" 14 1/4" High body increases overall height
S.P.M.-Choice of one is standard90
S.P.M.-Optional45, 60, 75, 45 to 90, 43 to 50, 50 to 58, 58 to 65, 77 to 86
Slide adjustment3"
Approximate weight-(Std. press)Standard press9,800#
Slide cap holeDiameter2" (maximum opt.-3") Depth 3 1/4"
FlywheelWeight415#-high speed 133# Speed (std.) 657 R.P.M. @ 45 S.P.M.
Bolster drilling and special openingsOptional
Cushion stroke and tonnageat 100 p.s.i opt.3 1/2"-7.5 tons Optional
Flanged ram-with or without slide capsLRXFBOpt. 21" x 16"
Reduces shut height3 3/4"
Main motorHP & RPM10 HP-1800 R.P.M.
