Torc-Pac 32

Overview

Torc-Pac 32 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Torc-Pac 32

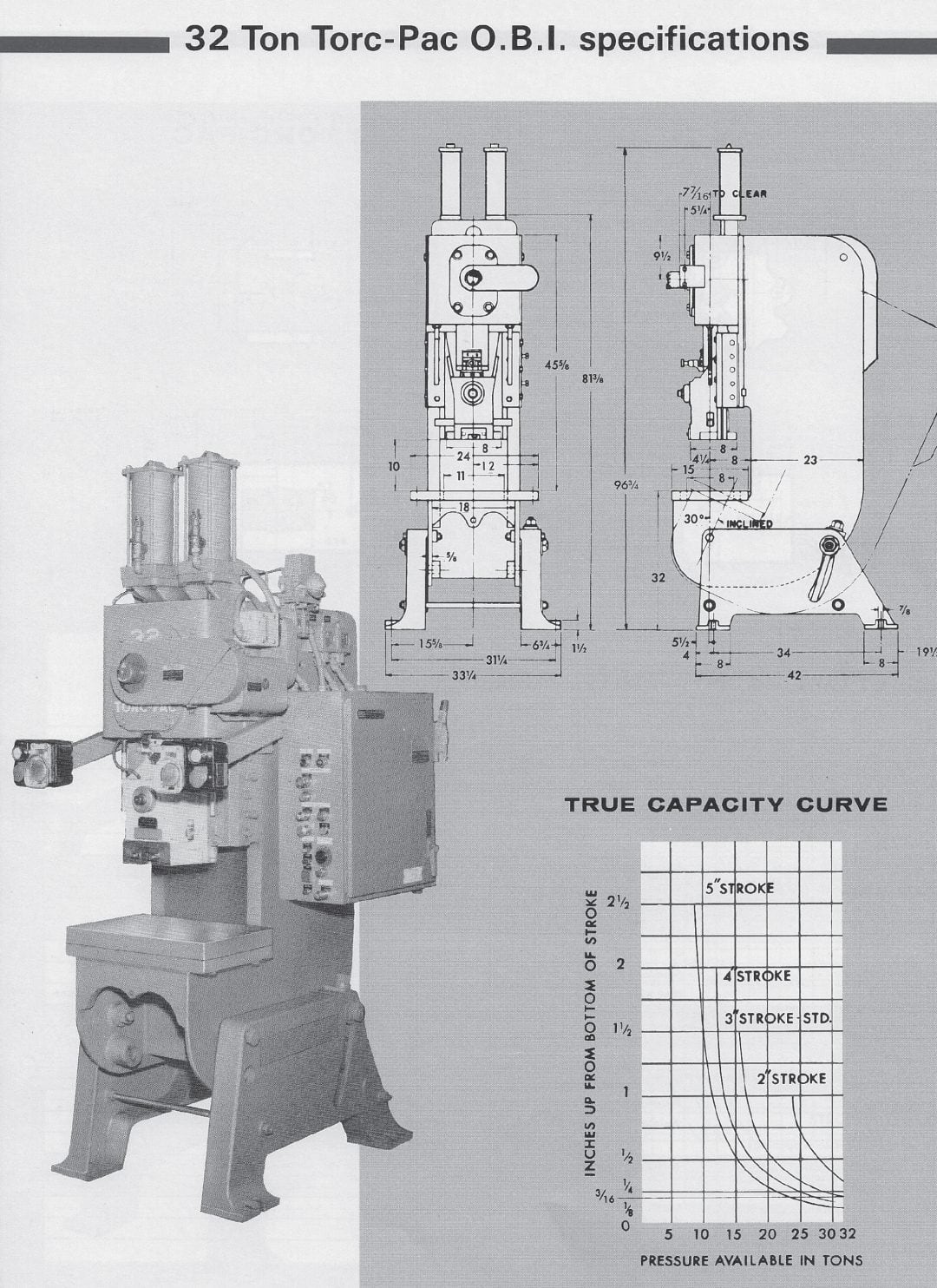

32-TON TORC-PAC PRESS SPECIFICATIONS
Capacity32 tons
Shaft diameterAt main bearings3" At Eccentric 6" (2" & 3" strokes), 8" (4" & 5" strokes)
Bolster AreaL RX FBX thickness 24" x 15" x 2 1/4"
Bed opening LRXFB11" x 8"
Width through back14 1/2"
Depth of throat8" standard 10 1/2" optional
Height81 3/8"; over counterbalance cylinder-96 3/4"
Basic overall dimensions (Std. frame)Width33 1/4"
FB upright44"
FB inclined62 3/4"
Strokes3" std. 2" opt. 4" opt. 5" opt.
Shut heightStandard frame10" std. 11" opt. 8 1/2" opt. 8" opt. Note: flanged ram reduces shut height by 3"
Opt. high body13" std. 14" opt. 11 1/2" opt. 11" opt. High body increases overall height
S.P.M.-Choice of one is standard60, 70 to 90, 110, 130
S.P.M.-Optional85 to 170, 100 to 117, 117 to 135, 135 to 152, 152 to 170
Slide adjustment2 1/4"
Approximate weight-(Std. press)Standard press3,400#
Slide cap holeDiameter1-9/16" (maximum opt.-2 1/2") Depth 3"
FlywheelWeight335# Speed (min.) 462 R.P.M. @ 60 S.P.M.
Bolster drilling and special openingsOptional
Cushion stroke and tonnageat 100 p.s.i opt.2 1/2"-3 tons Optional
Flanged ram-with or without slide capsLRXFBOpt. 15" x 12"
Reduces shut height3"
Main motorHP & RPM5 HP-1800 R.P.M.
