Torc-Pac 2100

Overview

Torc-Pac 2100 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

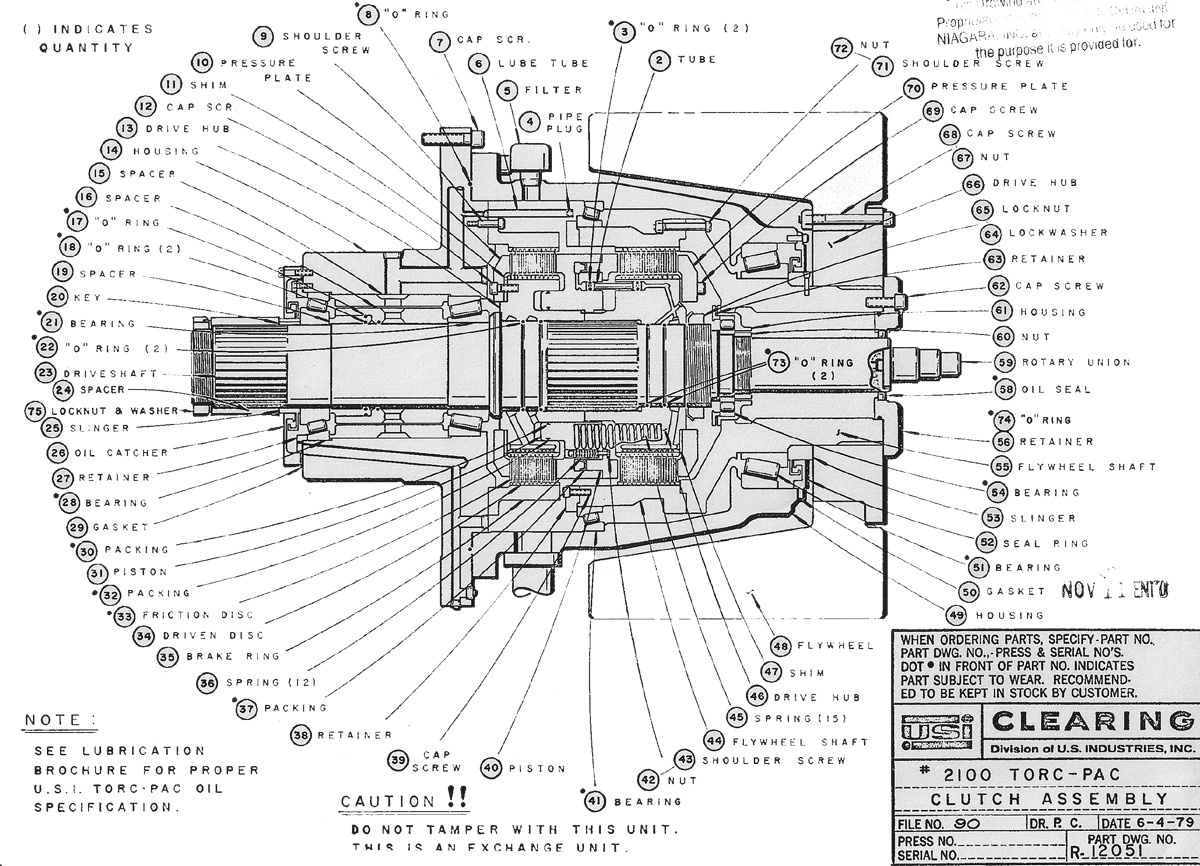

Torc-Pac 2100

Part No.DescriptionPart No.DescriptionPart No.Description
2Tube25Slinger50Gasket
•3"O" Ring (2)26Oil Catcher•51Bearing
4Pipe Plug27Retainer52Seal Ring
5Filter•28Bearing53Slinger
6Lube Tube29Gasket•54Bearing
7Cap Scr.•30Packing55Flywheel Shaft
•8"O" Ring 31Piston56Retainer
9Shoulder Screw•32Packing•58Oil Seal
10Pressure Plate•33Friction Disc59Rotary Union
11Shim34Driven Disc60Nut
12Cap Scr.35Brake Ring61Housing
13Drive Hub36Spring (12)62Cap Screw
14Housing•37Packing63Retainer
15Spacer38Retainer64Lockwasher
16Spacer39Cap Screw65Locknut
•17"O" Ring40Piston66Drive Hub
•18"O" Ring (2)•41Bearing67Nut
19Spacer42Nut68Cap Screw
20Key43Shoulder Screw69Cap Screw
•21Bearing44Flywheel Shaft70Pressure Plate
•22"O" Ring (2)45Spring (15)71Shoulder Screw
23Driveshaft46Drive Hub72Nut
24Spacer 47Shim•73"O" Ring (2)
48Flywheel •74"O" Ring
49Housing75Locknut & Washer

NOTE: SEE LUBRICATION BROCHURE FOR PROPER U.S.I. TORC-PAC OIL SPECIFICATION.

CAUTION!! DO NOT TAMPER WITH THIS UNIT. THIS IS AN EXCHANGE UNIT

NOTE: SEE LUBRICATION BROCHURE FOR PROPER U.S.I. TORC-PAC OIL SPECIFICATION.
