Torc-Pac 20A, 22, 32, 45, & 60

Overview

Torc-Pac 20A, 22, 32, 45, & 60 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Torc-Pac 20A, 22, 32, 45, & 60

Torc-Pac Press Drive

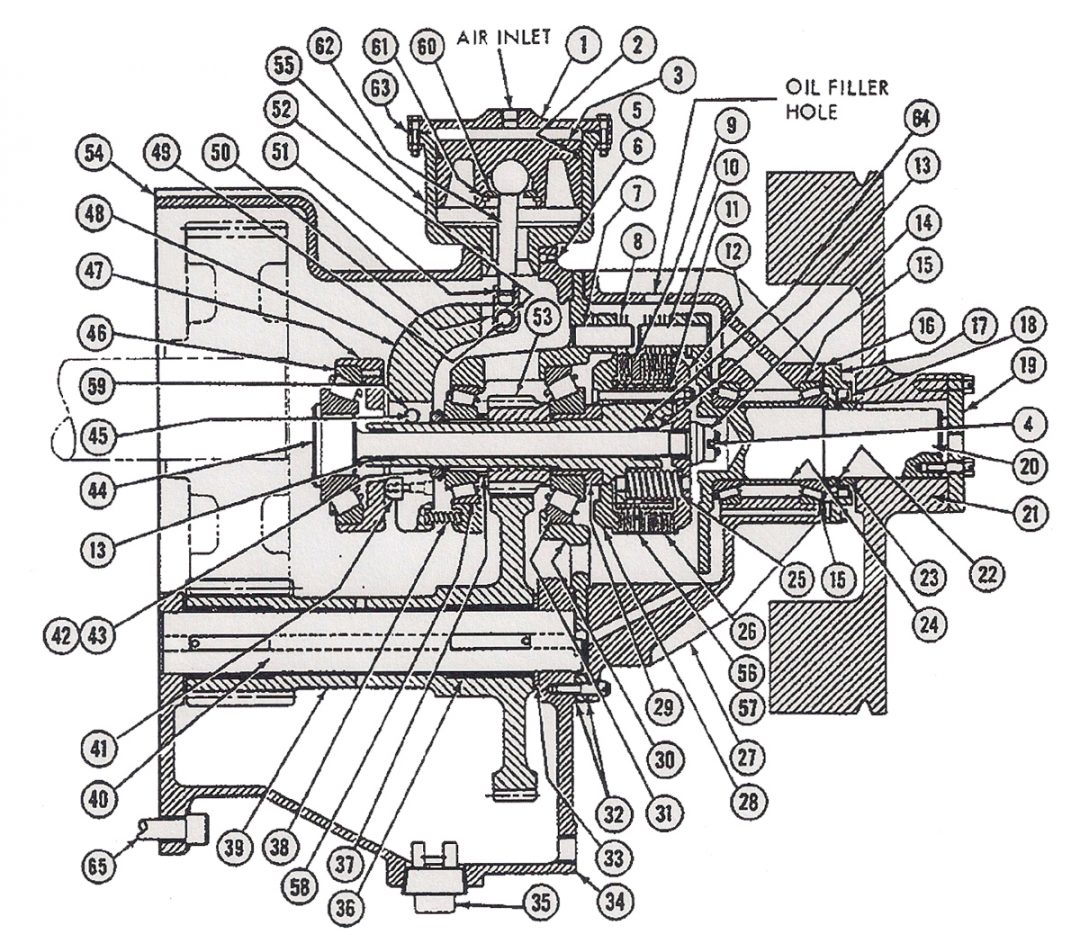

PARTS LIST
1Cylinder Cover34Front Housing
2Quad Ring*35Magnetic Plug
3Air Piston36Bushing
4Lock Pin37Spacer
5Nylon Plug38Spring
6Socket Set Screw39Cluster Gear
7Drive Pin40Shaft
8Disc41Wear Bar
9Back Up Plate42Locknut
10Drive Pin43Lockwasher
11Spacer 44Tie Rod
12Clutch Plate45Bell Crank Pin
13Bushing46Bearing
14Special Nut47Thrust Collar
15Bearing48Bell Crank
16Gasket*49Pin
17Seal Housing50Clevis
18Oil Seal*51Snap Ring
19Retainer52Bushing
20Input Shaft53Pinion
21Flywheel54Gasket
22"O" Ring*55Cylinder
23Bearing Retainer56Socket Head Set Screw
24Spacer 57Socket Head Set Screw
25Spring58Bearing
26Friction Disc59Bushing
27Rear Housing60Ball Retainer
28Brake Plate61Retaining Ring
29Sleeve62Piston Shaft
30Bearing Support63Gasket*
31Bearing 64Drive Spider
32Gasket*65Mounting Screws
33Thrust Washer
