SERIES B & BI-FORM A-26-A

Overview

Series B & BI-Form A-26-A specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

FRAMEB-I Models only
1Knockout Holder26Hex Nut
2Knockout Rod27Washer
3Operator's Station28Positioning Stud
4Gib Lock Screw29Pivot Stud
5Washer31L.H. Leg
6Adjusting Nut32R.H. Leg (not shown)
7Adjusting Screw33Inclining Nut
8Gib Screw34Inclining Bearing
9Front R.H. Gib35Screw Pin
10Front L.H. Gib36Inclining Screw
11Rear Gib37Hex Nut
12Control Box38Bracket Screw
13Gear Guard39Inclining Bracket
14Gear Guard Plate
15Belt Guard (Geared presses only)
16Driving Belt
17Motor Pulley
18Motor Key
19Main Motor
20Motor Adjusting Screw
21Locknut
22Hinge Pin
23Motor Plate
24Motor Plate Bracket (Design may vary)
25Bolster Plate
30Frame

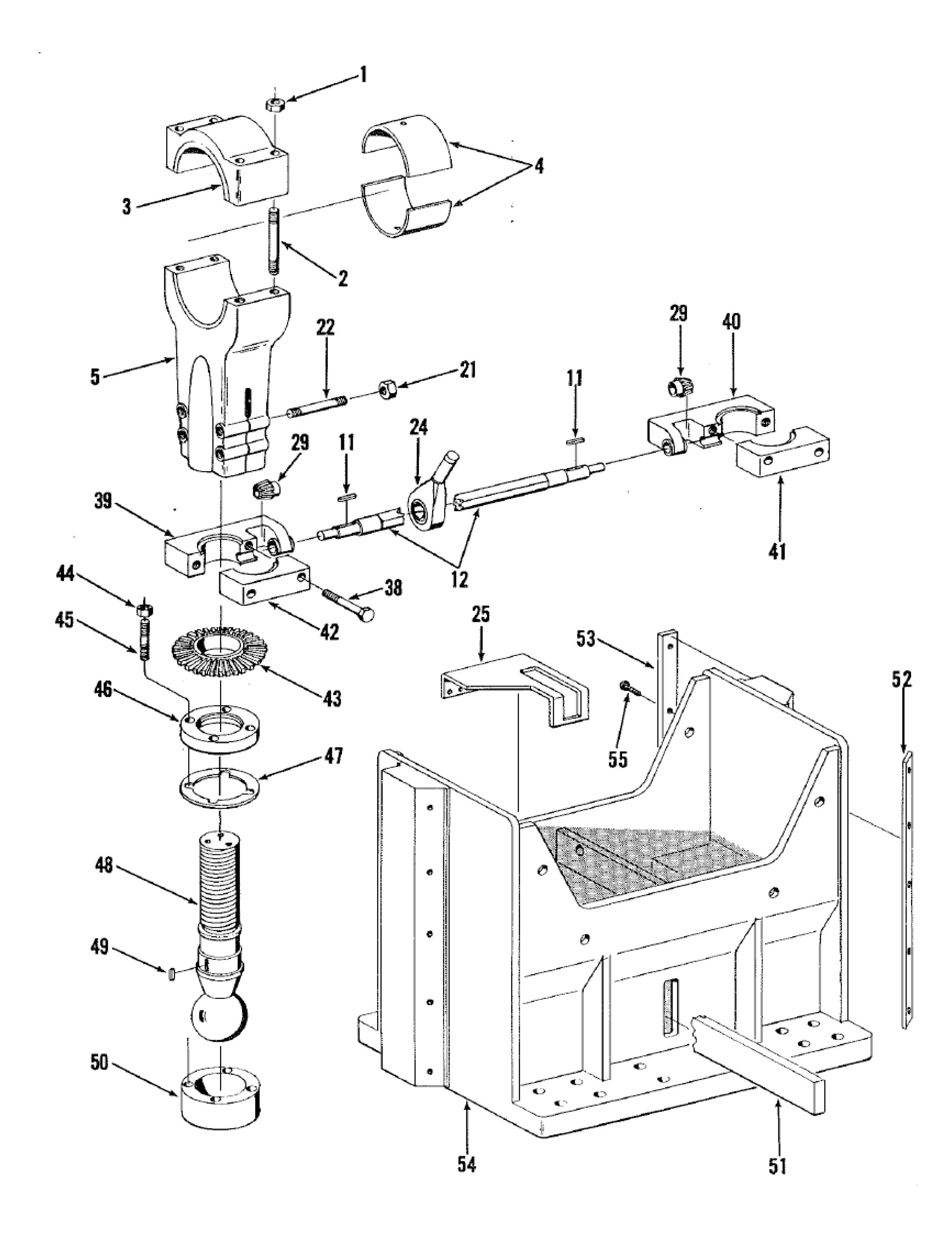

MANUALLY ADJUSTABLE SLIDE ASSEMBLY

1Stud Nut
2Connection Cap Stud
3Connection Cap
4Connection Bushing
5L.H. Connection
5-AR.H. Connection (not shown)
11Adjusting Shaft Key
12Adjusting Shaft
21Clamping Stud Nut
22Clamping Stud
24Adjusting Ratchet Wrench
24Wrench Guide
29Slide Adjusting Pinion
38Adjusting Bracket Screw
39L.H. Adjusting Bracket
40R.H. Adjusting Bracket
41R.H. Adjusting Bracket Cap
42L.H. Adjusting Bracket Cap
43Adjusting Gear
44Stud Nut
45Ball Cap Stud
46Connection Ball Cap
47Connection Ball Shim
48L.H. Connection Ball Screw
48-AR.H. Connection Ball Screw (not shown)
49Adjusting Gear Key
50Connection Ball Seat
51Knockout Bar
52Front Slide Lever
53Rear Slide Lever
54Slide
55Liner Fastening Screw

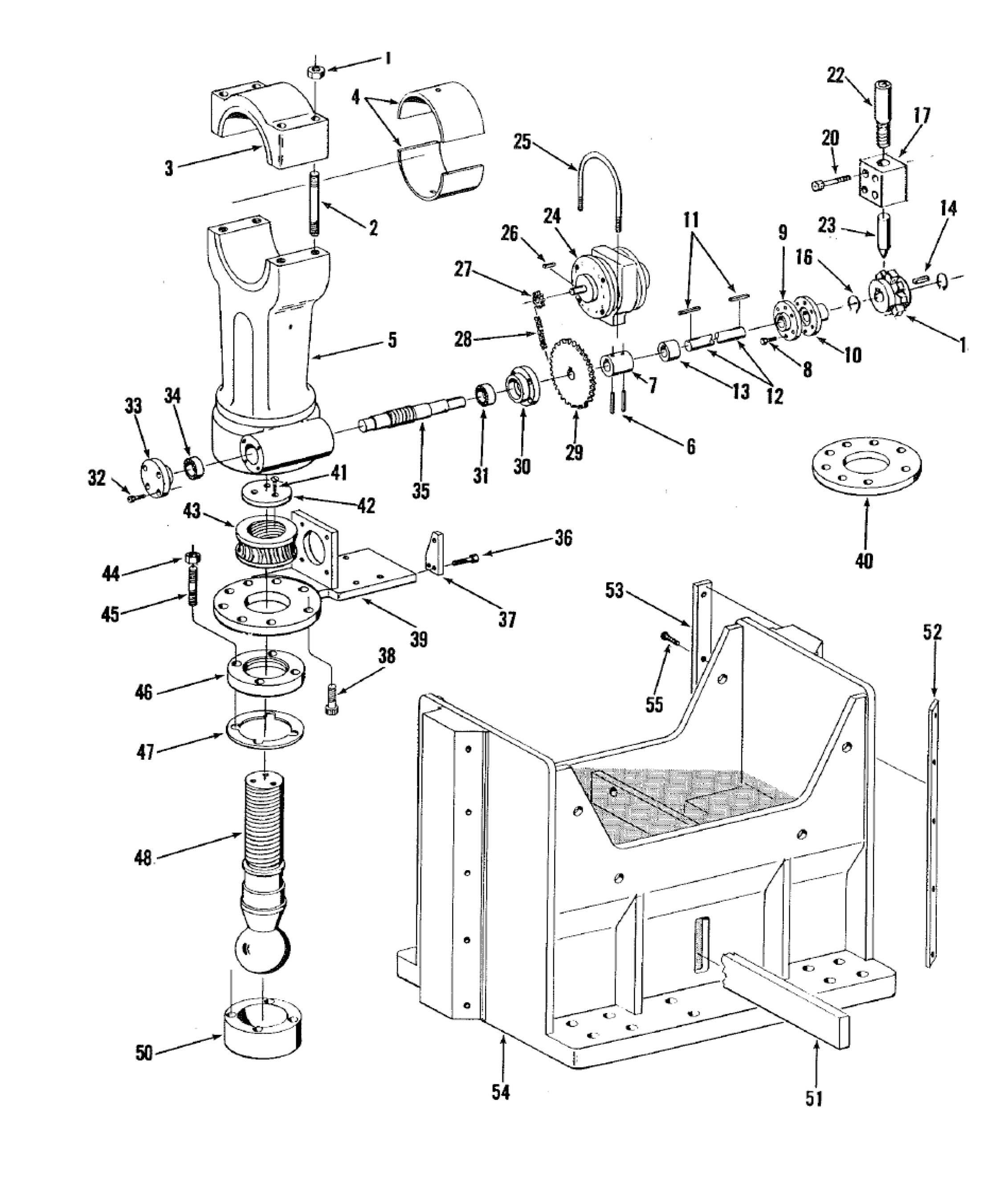

POWER ADJUSTABLE SLIDE ASSEMBLY

1Stud Nut35-AR.H. Slide Adjusting Worm (Not Shown)
2Conection Cap Stud36Bracket Screw
3Connection Cap37Brake Bracket
4Connection Bushing38Retainer Screw
5L.H. Connection39L.H. Worm Gear Retainer
5-AR.H. Connection (Not Shown)40R.H. Worm Gear Retainer
6Roll Pins41Retaining Screw
7Sleeve Coupling42Ball Screw Cap
8Coupling Screw43L.H. Adjusting Worm Gear
9L.H. Coupling Half43-AR.H. Adjusting Worm Gear (Not Shown)
10R.H. Coupling Half44Stud Nut
11Adjusting Shaft Key45Ball Cap Stud
12Adjusting Shaft 46Connection Ball Cap
13Adj. Locking Pinion47Connection Ball Shim
14Key48L.H. Connection Ball Screw
16Retainer Ring48-AR.H. Connection Ball Screw (Not Shown)
17Locking Pin Bracket50Connection Ball Seat
20Mounting Screw51Knockout Bar
22Air Cylinder52Front Slide Liner
23Locking Pin53Rear Slide Liner
24Air Motor54Slide
25Morotr Strap55Liner Fastening Screw
26Motor Key
27Driving Sprocket
28Chain
29Driven Sprocket
30Inside Bearing Retainer
31Inside Bearing
32Retaining Screw
33Outside Bearing Retainer
34Outside Bearing
35L.H. Slide Adjusting Worm

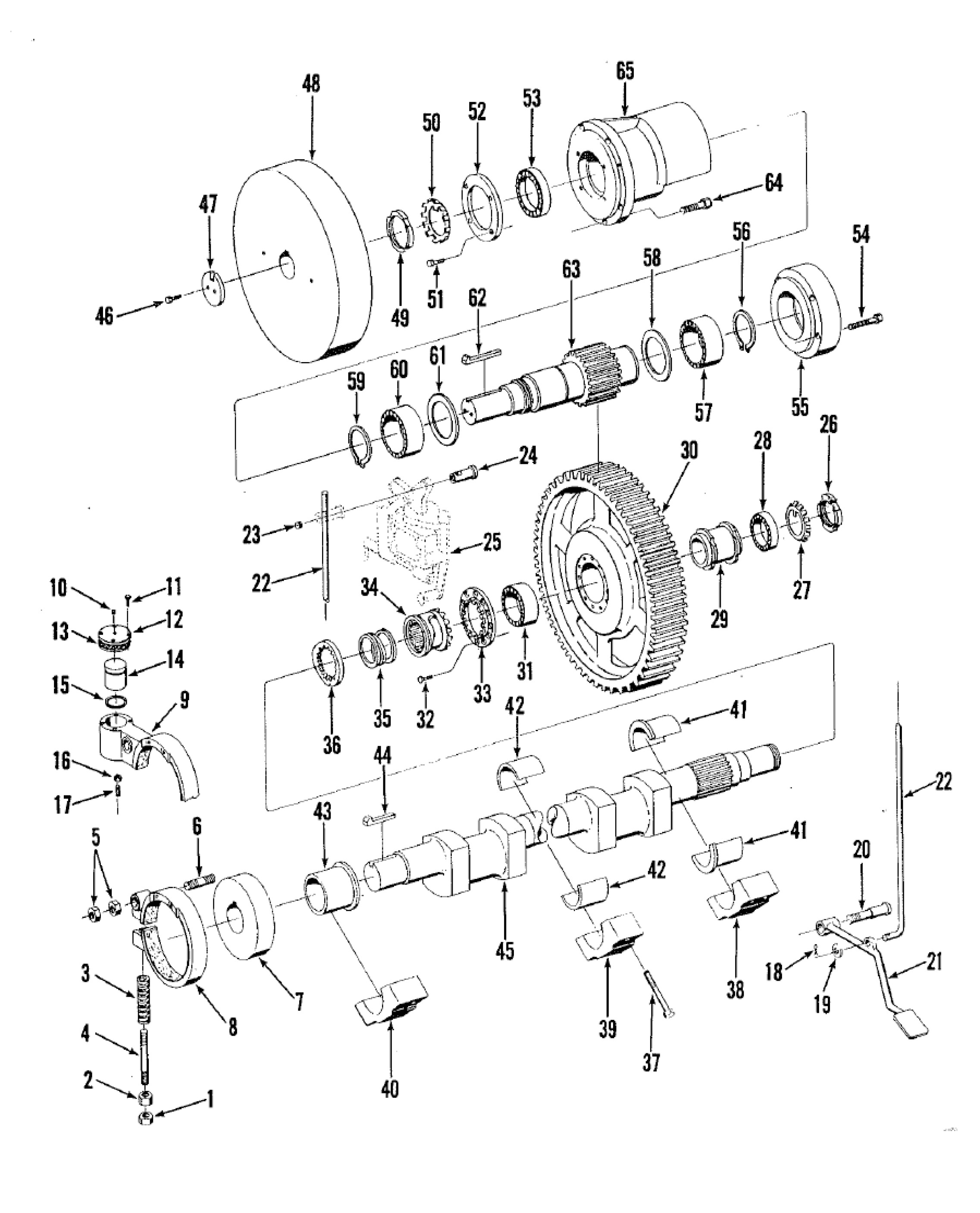

DRIVE-MECHANICAL SLEEVE CLUTCH

Plain and Geared PressAir Releasing Strap Brake only
1Brake Locknut9Brake Strap
2Brake Adjusting Nut10Air Fitting
3Brake Spring11Cylinder Cover Screw
4Brake Spring Stud12Cylinder Cover
5Brake Mounting Nuts13Cylinder Gasket
6Brake Strap Mounting Stud14Piston
7Brake Collar15"O" Ring
25Latch Bracket (See separate Part List 16Locknut
26Locknut17Adjusting Screw
27Lockwasher
28Outer Gearwheel BearingGeared Press only
29Spacing Collar
30Gearwheel (Flywheel on Plain Press)46Washer Screw
31Inner Gearwheel Bearing 47Flywheel Clamping Washer
32Clutch Ring Moutning Bolt48Flywheeel
33Clutch Ring 49Locknut
34Clutch Sleeve50Lockwasher
35Clutch Spring51Retainer Screw
36Clutch cam52Bearing Retainer
37Bearing Cap Screw53Flywheel Support Bearing
38R.H. Main Bearing Cap54Bearing Cap Screw
39Center Main Bearing Cap55Bearing Cap
40L.H. Main Bearing Cap56Retaining Ring
41R.H. Main Bearing 57Outer Driveshaft Bearing
42Center Main Bearing 58Outer Bearing Seal
43L.H. Main Bearing 59Retaining Ring
44Brake Collar Key60Inner Driveshaft Bearing
45Crank Shaft61Inner Bearing Seal
62Flywheel Key
Treadle Operated only63Driveshaft
64Drive Suport Screw
8Drag Brake Strap65Drive Support
18Cotter Pin
19Washer
20Treadle Stud
21Foot Treadle
22Treadle Rod
23Set Screw
24Treadle Rod Pin

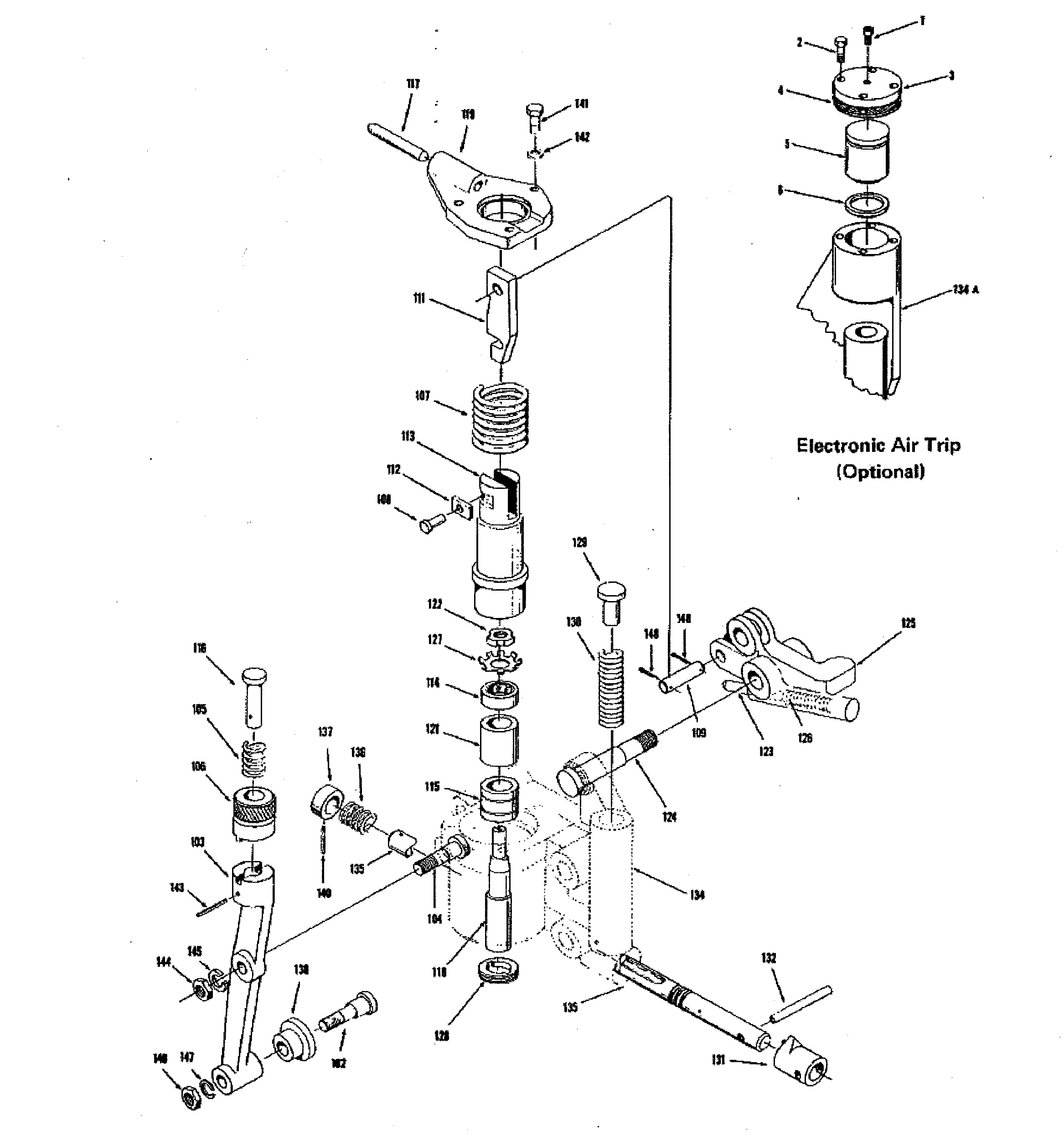

LATCH BRACKET ASSEMBLY

All Mechanical Sleeve Clutch Models

102Cam Roller Shaft
103Cam Lever
104Cam Lever Pin
105Selector Knob Spring
106Selector Knob
107Throwout Spring
108Throwout Pin
109Latch Pin
111Latch
112Throwout Key
113Throwout
114Throwout Ball Bearing
115Throwout Needle Bearing
116Selector Knob Pin
117Sliding Pin
118Throwout Shaft
119Throwout Housing Cover
121Spacing Collar
122Lock Nut
123Latch Spring Pin
124Bell Crank Pin
125Bell Crank
126Latch Spring
127Lock Washer
128Thwoout Shaft Collar
129Treadle Spring Plunger
130Treadle Spring
131Locking Bar Indicator
132Locking Bar Pin
134Throwout Housing
135Locking Bar
136Locking Bar Spring
137Locking Bar End Collar
138Cam Roller
140End Collar Roll Pin
141Housing Cover Fastening Screw
142Washer
143Cam Lever Roll Pin
144Cam Lever Pin Nut
145Lockwasher
146Cam Roller Shaft Nut
147Lockwasher
148Latch Pin Cotter Pins
Electronic Air Trip
(Optional)

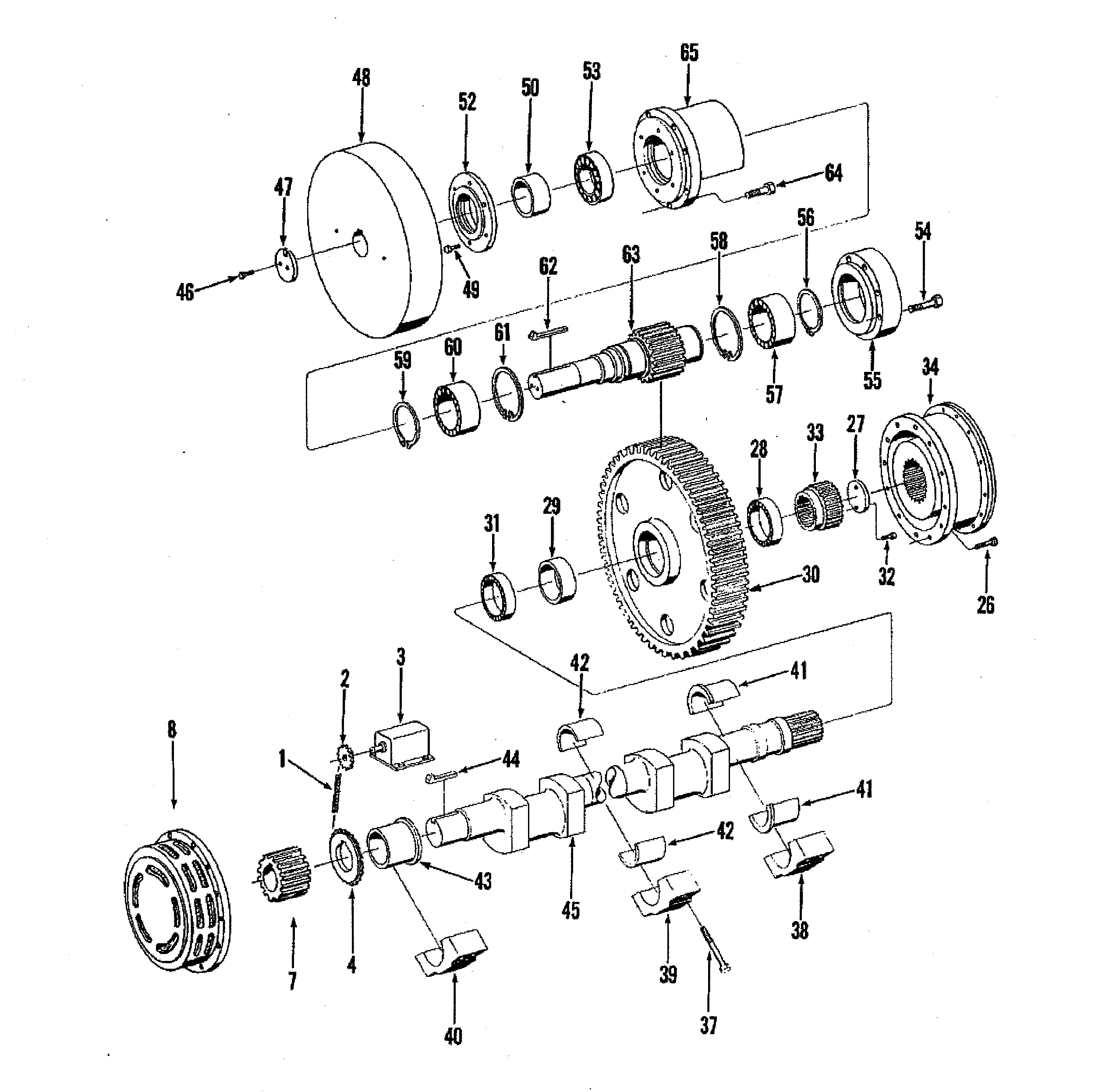

DRIVE-AIR FRICTION CLUTCH

(All models except B-4 and BI-4)

Plain and Geared PressesGeared Press Only
1Limit Switch Chain46Washer Screw
2Limit Switch Sprocket47Flywheel Clamping Washer
3Limit Switch48Flywheel
4Crankshaft Sprocket49Capscrew
7Brake Hub50Spacer
8Disc Brake (See Separate Parts List)52Bearing Retainer
26Clutch Mounting Screw53Flywheel Support Bearing
27Hub Clamping Washer54Bearing Cap Screw
28Outer Gearwheel Bearing55Bearing Cap
29Spacer 56Retaining Ring
30Gearwheel (Flywheel on Plain Press)57Outer Driveshaft Bearing
31Inner Gearwheel Bearing58Retaining Ring
32Washer Screw59Retaining Ring
33Clutch Hub60Inner Driveshaft Bearing
34Air Friction Clutch (See Separate Parts List)61Retaining Ring
37Bearing Cap Screw62Flywheel Key
38R.H. Main Bearing Cap63Drive Shaft
39Center Main Beaing Cap64Drive Support Screw
40L.H. Main Bearing Cap65Drive Support
41R.H. Main Bearing
42Center Main Bearing
43L.H. Main Bearing
44Brake Collar Key
45Crank Shaft

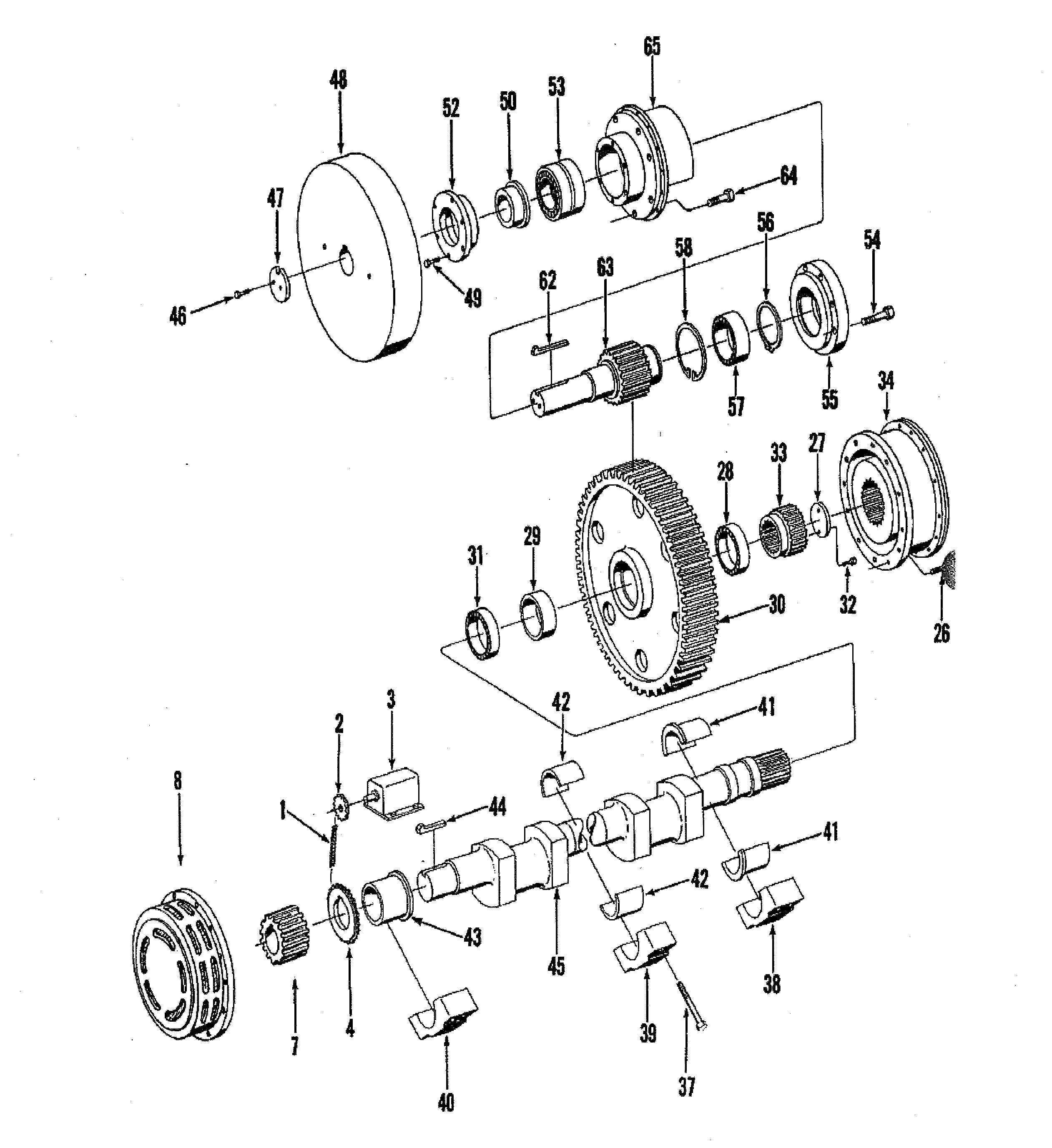

DRIVE-AIR FRICTION CLUTCH

(Models B-4 and BI-4 only)

Plain and Geared PressesGeared Presses Only
1Limit Switch Chain46Washer Screw
2Limit Switch Sprocket47Flywheel Clamping Washer
3Limit Switch 48Flywheel
4Crankshaft Sprocket49Capscrew
7Brake Hub50Spacer
8Disc Brake (See Separate Parts List)52Bearing Retainer
26Clutch Mounting Screw53Flywheel Support Bearing
27Hub Clamping Washer54Bearing Cap Screw
28Outer Gearwheel Bearing55Bearing Cap
29Spacer56Retaining Ring
30Gearwheel (Flywheel on Plain Press)57Driveshaft Bearing
31Inner Gearwheel Bearing58Retaining Ring
32Washer Screw62Flywheel Key
33Clutch Hub 63Driveshaft
34Air Friction Clutch (See Separate Parts List)64Drive Support Screw
37Bearing Cap Screw65Drive Support
38R.H. Main Bearing Cap
39Center Main Bearing cap
40L.H. Main Bearing Cap
41R.H. Main Bearing
42Center Main Bearing
43L.H. Main Bearing
44Brake Collar Key
45Crankshaft

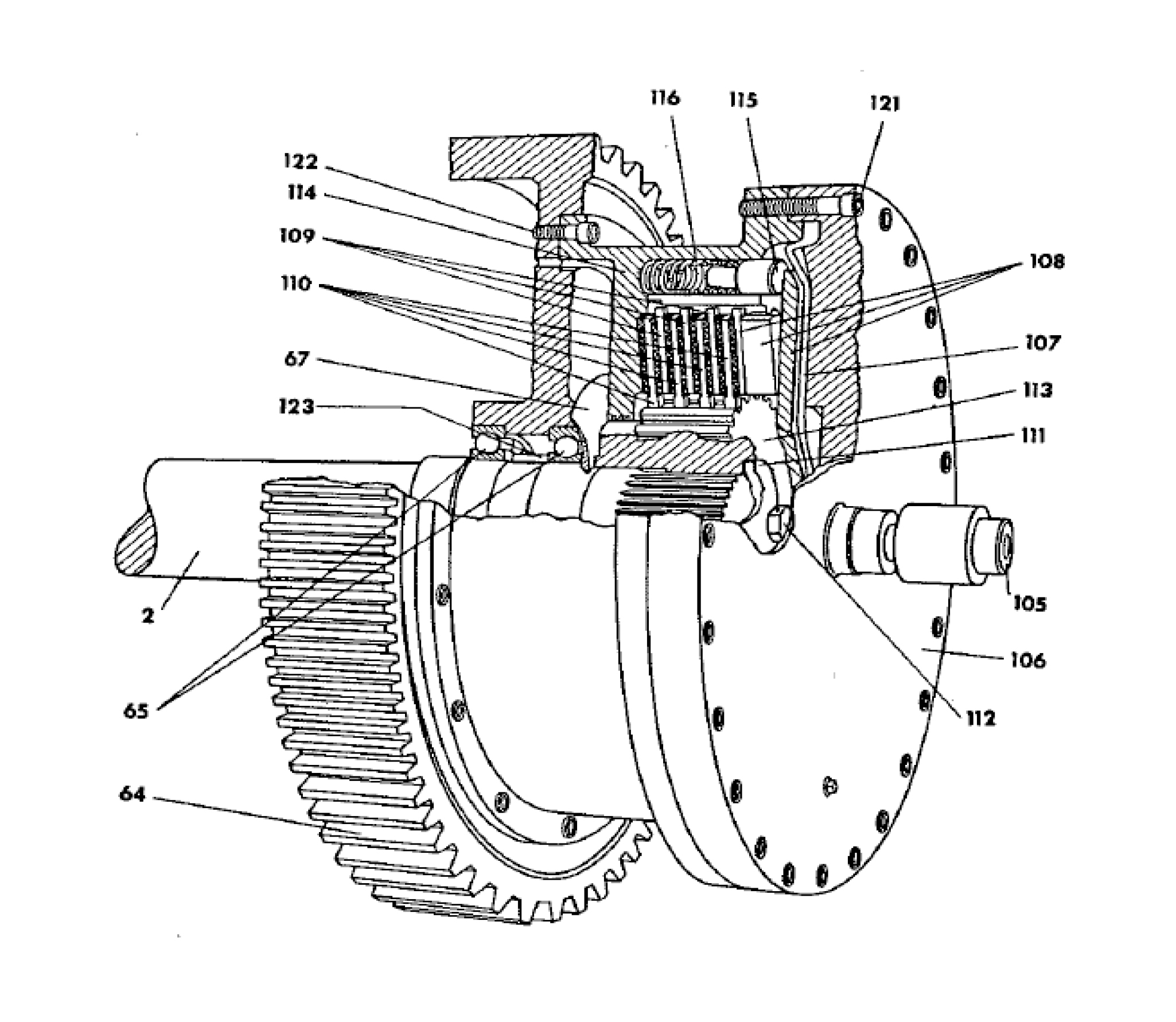

AIR FRICTION CLUTCH

(Models B-4 and BI-4 only)

2Crankshaft
64Gearwheel or Flywheel
65Gearwheel Ball Bearings
67Clutch Oil Slinger
105Rotary Air Seal
106Clutch Cylinder
107Clutch Diaphragm
108Push Plate Assembly
109Outer Clutch Plates
110Inner Clutch Plates with Bonded Linings
111Driving Hub Retainer
112Hex Head Capscrew
113Driving Hub
114Clutch Housing
115Spring Plungers
116Springs
121Cylinder Screws
122Clutch Housing Screws
123Bearing Spacer

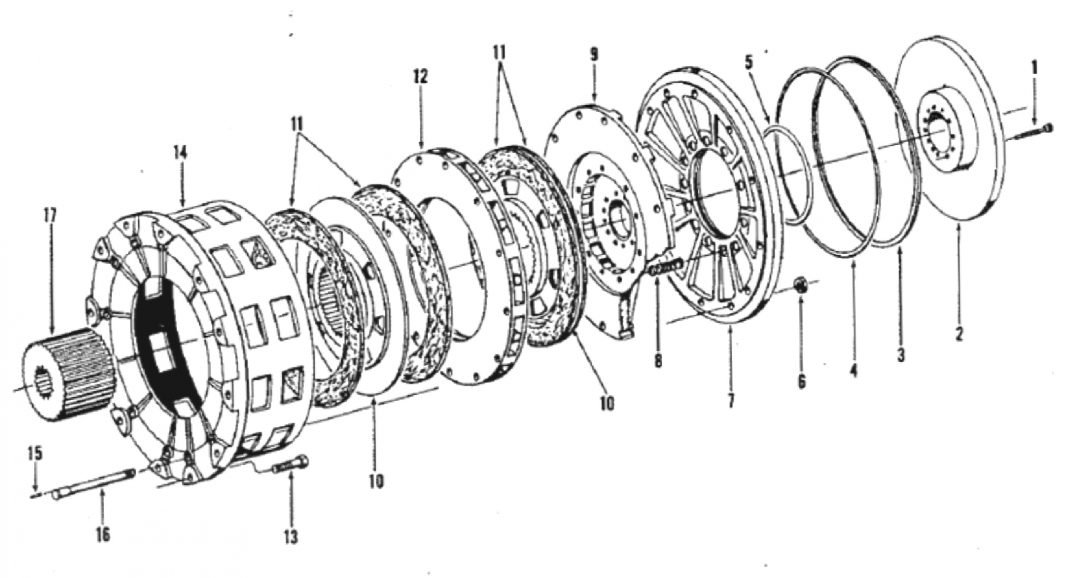

Air Releasing Disc Brake

1Piston Screw
2Piston
3Piston Dust Seal
4Piston Ring (outer)
5Piston Ring (inner)
6Cylinder Stud Nut
7Cylinder
8Spring
9Pressure Plate
10Brake Disc
11Brake Lining
12Center Plate
13Brake Ring Mounting Screw
14Brake Ring
15Brake Stud Pin
16Brake Stud
17Brake Hub
18Lining Rivet (not shown)

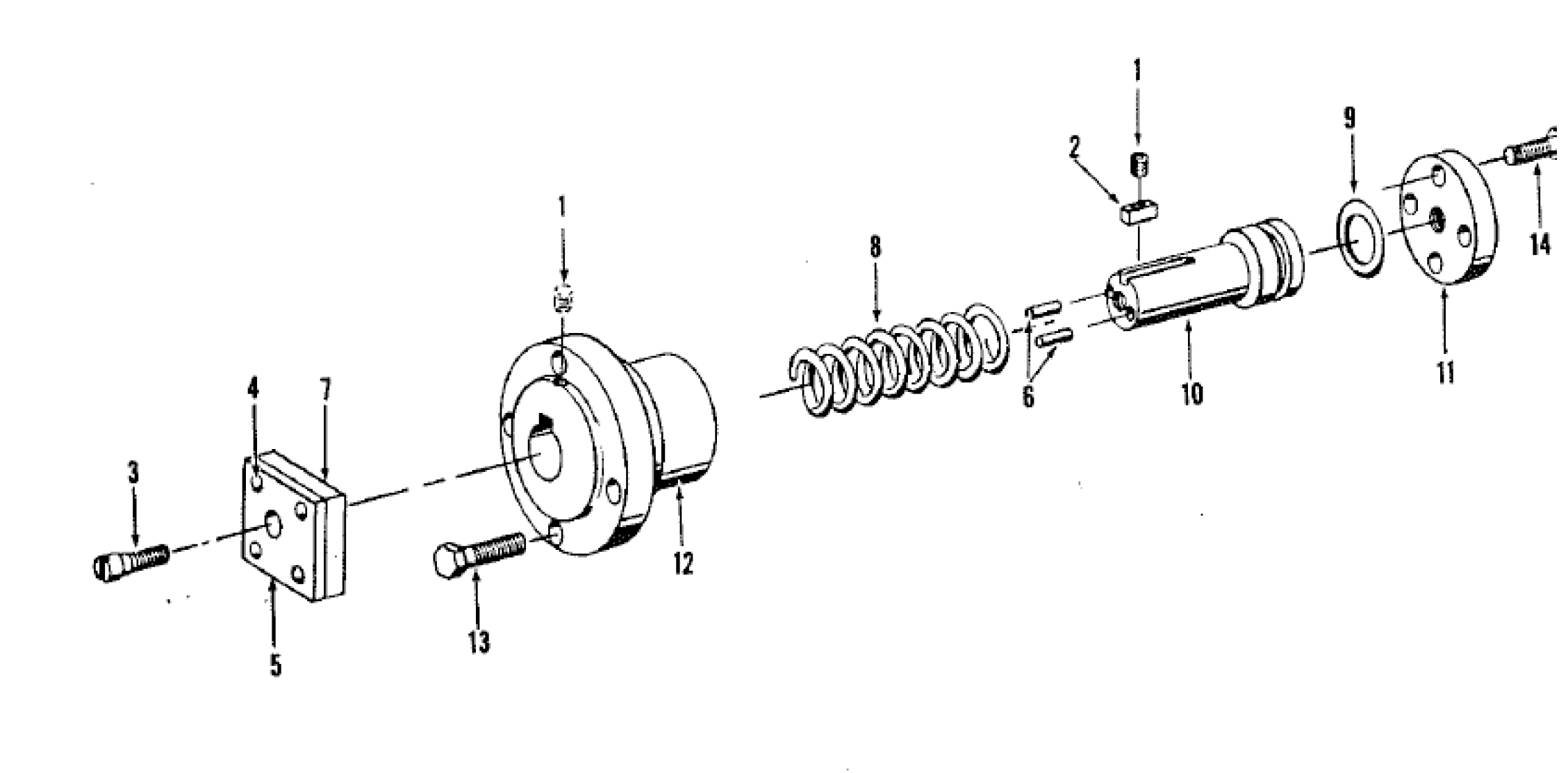

Flywheel Brake

1Key Dowel Pin
2Guide Key
3Mounting Screw
4Rivet
5Brake Lining
6Dowel Pin
7Brake Shoe
8Spring
9"O" Ring
10Piston
11Cylinder Cover
12Cylinder
13Cylinder Mounting Screw
14Cover Mounting Screw

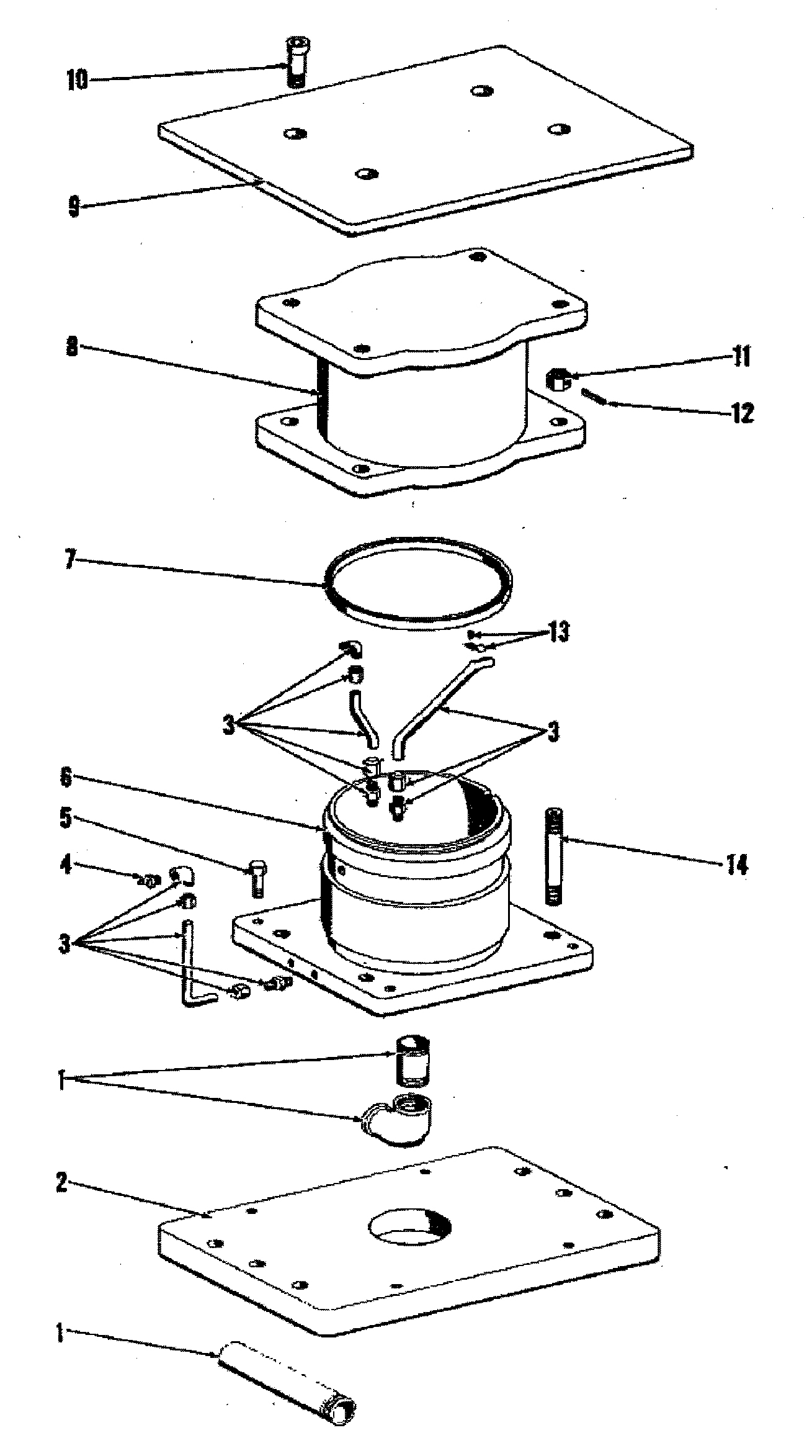

“C” TYPE CUSHION (optional)

WARNING: NEVER APPLY MORE THAN 5 PSI ON CUSHION WITH BOLSTER OFF PRESS OR WITH CUSHION OUT OF PRESS.

1Air Piping (Furnished by Customer)
2Mounting Plate
3Lubrication Piping
4Oil Fitting
5Cylinder Mounting Screw
6Cylinder
7"U" Packing
8Piston
9Pressure Plate
10Pressure Plate Mounting Screw
11Stop Nut
12Roll Pin
13Lube Pipe Clip and Screw
14Positive Stop Stud

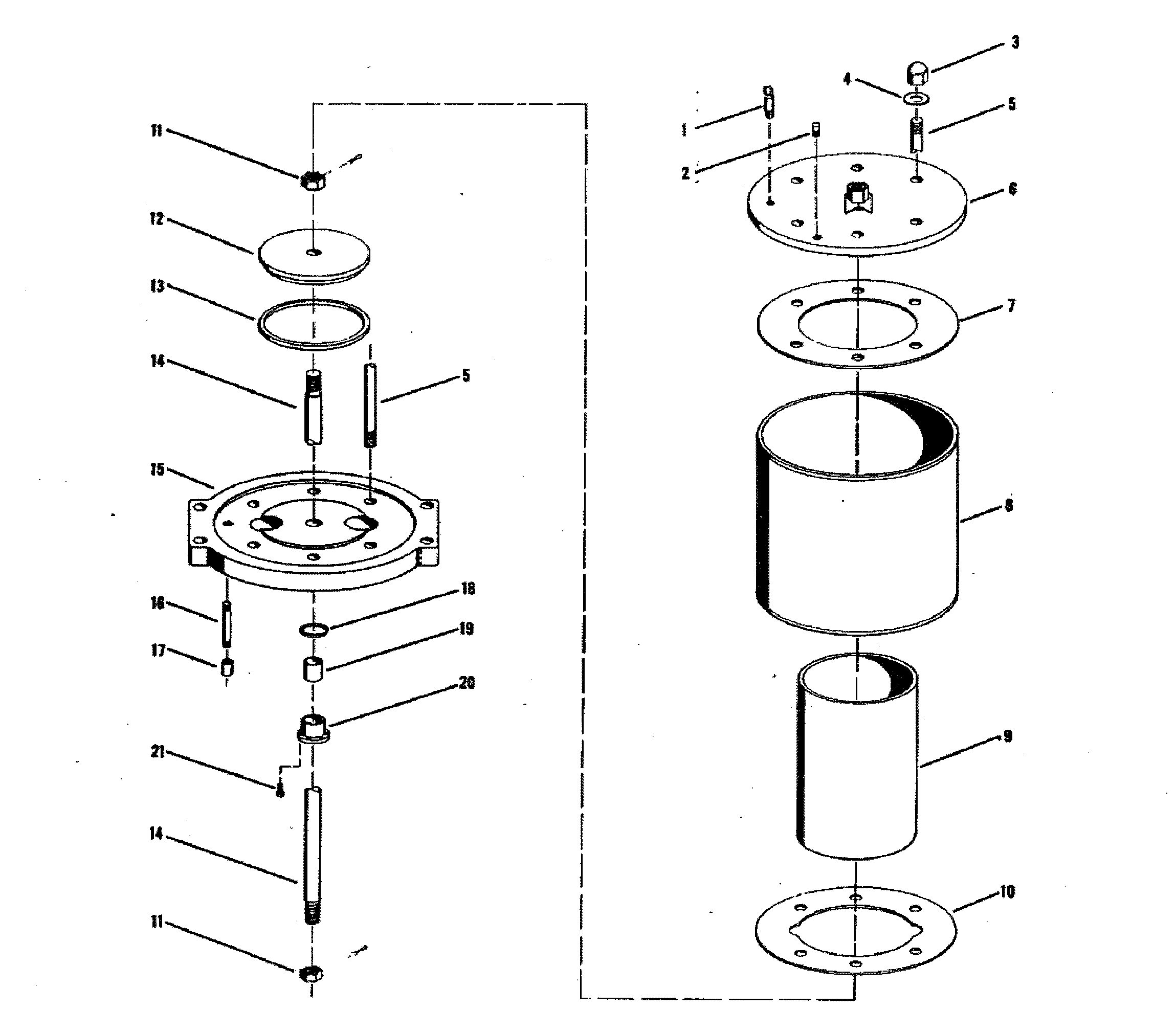

AIR COUNTERBALANCE, SELF CONTAINED

1Safety Valve12Piston
2Fusible Plug13"U" Packing
3Nut14Counterbalance Rod
4Seal Washer15Lower Cylinder Cap
5Tie Rod16Pipe Nipple
6Cylinder Cover17Pipe Coupling
7Upper Gasket18"U" Packing
8Counterbalance Outer Cylinder19Bushing
9Counterbalance Cylinder20Bushing Retainer
10Lower Gasket21Bushing Retainer Screw
11Counterbalance Rod Nut

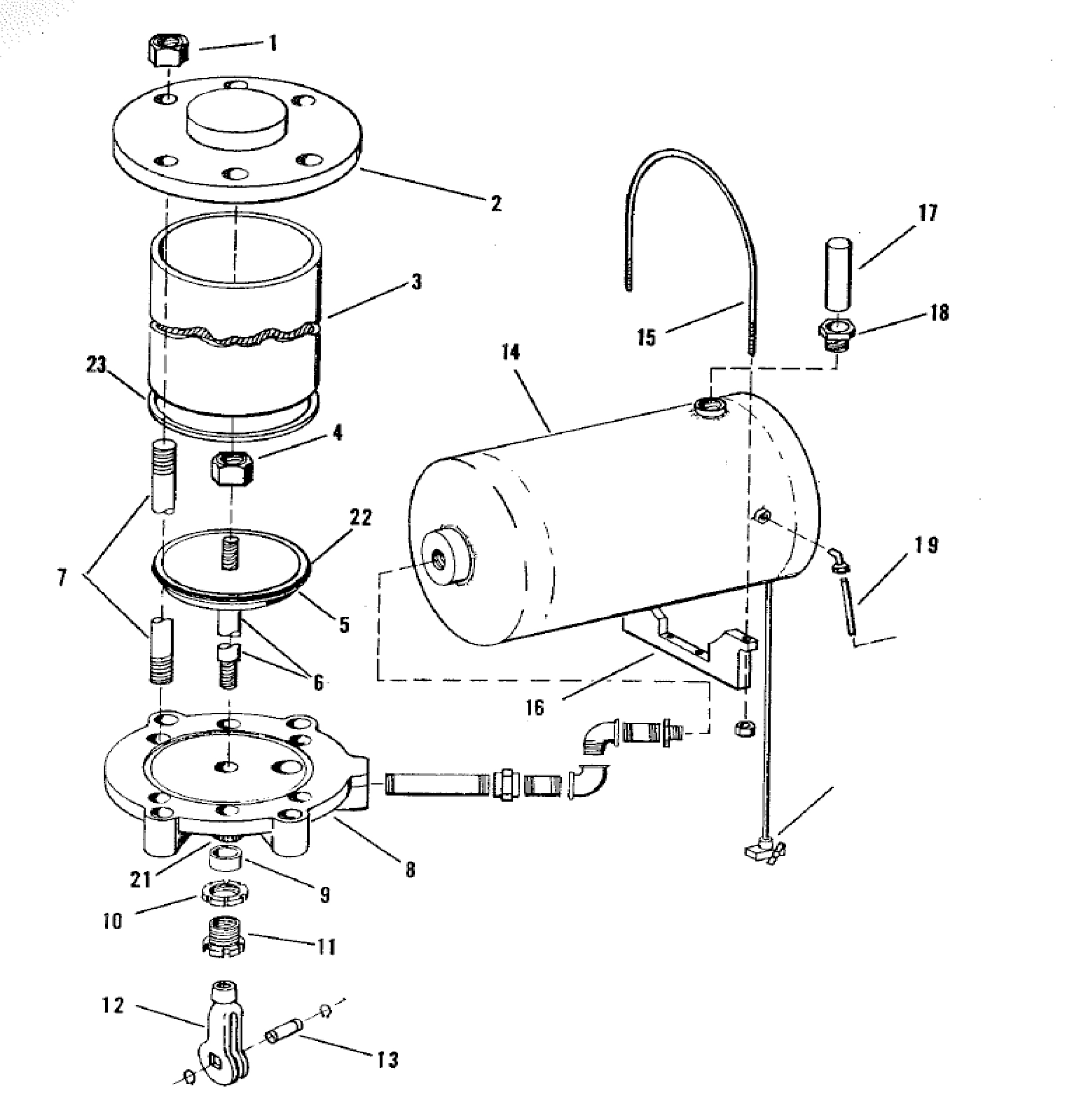

AIR COUNTERBALANCE AND TANK

1Tie Rod Nut12Clevis
2Upper Cylinder Cap13Retainer Ring
3Counterbalance Cylinder14Air Tank
4Piston Rod Nut15Tank Rod
5Piston 16Tank Bracket
6Piston Rod 17Safety Valve
7Tie Rod 18Bushing
8Lower Cylinder Cap19Air Supply Line
9Sleeve20Petcock
10Lock Nut21Stuffing Box Packing
11Compression Nut22Piston Packing
23Velumoid Gasket
