SERIES HD 55 – FORM B-25-A

Overview

Series HD 55 – Form B-25-A specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Frame

1Main Motor and Pump22Pivot Block
2Bolt23Pivot Shoe
3Valve Manifold24Pivot Block Retainer
4Bolt25Bolt
5Reservoir Cover26Bolt
6Bolt27Adjusting Block
7Oil Level Gage and Thermometer28Set Screw
8Mounting Bolt29Ram
9Seal30Pillow Block
10Cleanout Cover31Bolt
11Clevis32Safety Rail
12Pin33Ram Clamp Bar
13Snap Ring34Bolt
14Frame35Spring
15Limit Switch Assembly36L.H. Gib
16Filler Block37Bolt
17R.H. Gib38T-Nut
18Bolt39Washer
19Gib Liner (R.H. & L.H.)40Bolt
20Bolt41Cylinder
21Ram Liner

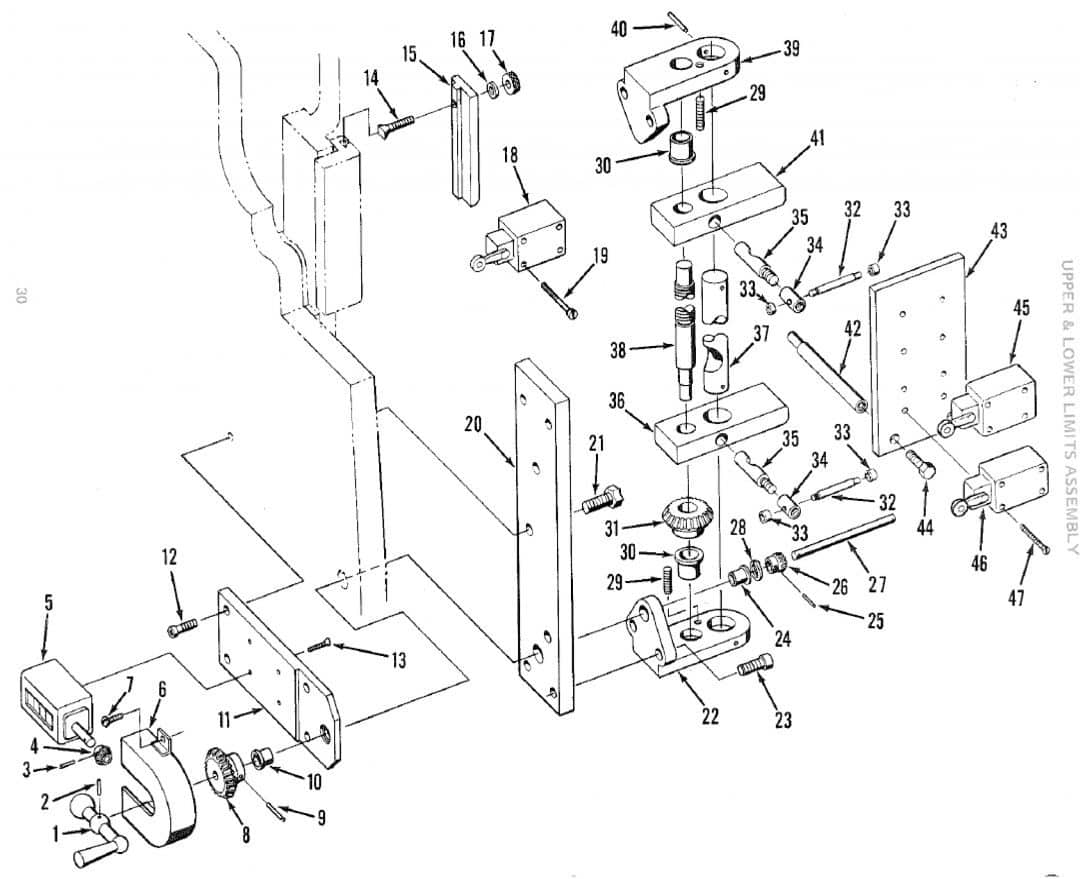

UPPER & LOWER LIMITS ASSEMBLY (CONTINUED)

1Handle25Pin
2Pin26Bevel Gear
3Pin27Shaft
4Bevel Gear28Retaining Ring
5Counter29Set Screws
6Gear Cover30Bushings
7Screw31Bevel Gear
8Bevel Gear32Handle
9Pin33Stops
10Bushing34Clamp Nut
11Bracket35Clamp Bolt
12Screw36Stop Block
13Screw37Gage Rod
14"V" Head Bolt38Screw
15Cam 39Bracket
16Washer40Roll Pin
17Nut41Stop Block
18Limit Switch42Support
19Screw43Bracket
20Plate44Bolt
21Bolt45Limit Switch
22Bracket46Limit Switch
23Capscrew47Screw
24Bushing

RAM LEVEL CONTROL (Continued)

1Tape24Bearing
2Cam Followers25Collar
3Sub Plate26Capscrew
4Plate27Shaft
5Bolt28Bracket
6Servo Sub Plate29Bolt
7Bolt30Collar
8Servo Valve31Set Screw
9Spring32Roll Pin
10Washer33Knob
11Screw34Set Screw
12Guide Rod35Tape Adjustment Screw
13Valve Mounting Bolt36Screw Housing
14Cushion37Screw
15Washer38Tilt Adjustment Scale
16Nut 39Bearing
17Tape Holder40Thrust Race
18Tape Clamp41Adjustment Nut
19Capscrew42Bolt
20Grease Fitting43Bolt
21Collar44Bracket
22Set Screw45L.H. Tape Idler
23R.H. Tape Idler

HYDRAULIC CYLINDER (Continued)

1Cap*
2Fitting
3Pin
4Retaining Ring
5Tie Rod
6"O" Rings*
7Barrel*
8Piston Rings*
9Piston*
10Head*
11Lock Nut
12Wear Ring
13"V" Packing
14Packing Gland
15Capscrew
16Wiper Ring
17Ball Screw Cap
18Mounting Bolt
19Ball Screw Lock
20Bolt
21Ball Screw
22Ball Seat
*Specify R.H. or L.H.
1Handle Screw25Sprocket
2Hand Knob26Key
3Hand Crank (Manually Driven)27Adjusting Screw
3aSpacer (Power Driven)28Guide Rod
4Key29Set Screw
5Helical Gear (Adjusting Screw)30Upright
6Collar31Washer
7Bushing32Cap Screw
8Cover Screw33Upright Adjusting Screw
9Counter Cover34Nut
10Mounting Screw35Washer
11Roll Pin (Used for Location)36Finger Rest
12Counter Mounting Screw37Finger Bolt
13Counter Bracket38Finger
14Counter39Shoulder Bolt
15Helical Gear (Counter)40Spring
16Set Screw41Support Arm
17Torque Tightening Sprocket42Collar
18Mounting Bolt43Roll Pin
19Chain 44Roll Pin
20Cartridge45Hand Crank
21Bushing46Handle
22Mounting Bolt47Stud
23Collar48Knurled Knob
24Set Screw

ADDITIONAL PARTS FOR FRONT OPERATED MICROMETER BACKGAGE (Continued).

1Chain Guard
2Screw
3Screw
4Bolt
5Sprocket Guard
6Bolt
7Motor
8Chain
9Bolt
10Motor Bracket
11Sprocket Idlers
12Tightener
13Bolt
14Drive Sprocket

STANDARD BACKGAGE.

1Finger Bolts
2Tee Bolts
3Washers
4Nuts
5Finger Rest
6Backgage Brackets
7Fingers
8Bracket Bolts
9Washers

MICROMETER TYPE BACKGAGE.

10"V" Bolt
11Backgage Base
12Lockwasher
13Locknut
14Bracket
15Tee Bolts
16Micrometer Stud
17Micrometer Support
18Nut
19Micrometer Nut
20Jam Nut
21Cap Screw
22Finger Support
23Finger
