SERIES HD 100 - FORM B-23

Overview

Series HD 100 – Form B-23 specification information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

FRAME

1Hydraulic Manifold & Pump24Capscrew
2Reservoir Cover25Set Screw
3Gasket26Lock Nut
4Mounting Bolt27Adjusting Block
5Mounting Bolt28Foot Switch
6Seal29R.H. Gib
7Inspection Doors30Inner Pivot Block
8"O" Ring31Safety Rail
9Clevis32Pillow Block
10Pin33Mounting Bolt
11Snap Ring34Mounting Bolt
12Frame35Die Clamp
13Control Box36Spring
14Mounting Bolt37Ram
15Limit Switch Assembly38Ram Liner (Both R.H. and L.H. sides)
16Filler Block39Mounting Screw
17Mounting Bolt40Mounting Screw
18Capscrew41Gib Liner (Both R.H. and L.H. sides)
19Set Screw42L.H. Gib
20Pivot Block Retainer43Filler Block Mounting Bolt
21Outer Pivot Block44Washer
22Pivot Shoe45Cylinder
23Mounting Bolt

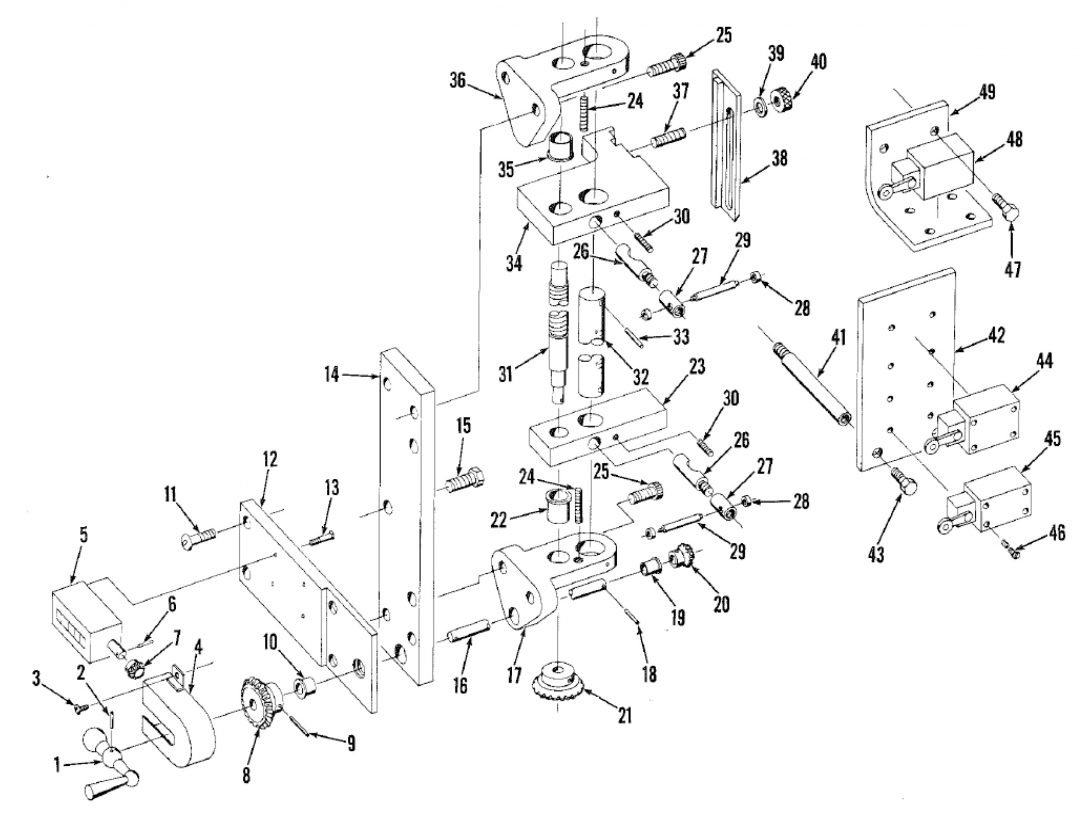

UPPER AND LOWER LIMIT ASSEMBLY

1Handle26Clamp Bolt
2Roll Pin27Clamp Nut
3Screw28Stop
4Gear Cover29Handle
5Counter30Set Screw
6Roll Pin31Screw
7Bevel Gear32Gage Rod
8Bevel Gear33Roll Pin
9Roll Pin34Upper Stop Block
10Bushing35Bushing
11Button Head Screw36Upper Gage Rod Bracket
12Counter Bracket37Set Screw
13Screw 38Cam
14Mounting Plate39Washer
15Bolt40Knurled Nut
16Shaft41Bracket Support
17Lower Gagge Rod Bracket42Limit Switch Mounting Plate
18Roll Pin43Bolt
19Bushing44Limit Switch
20Bevel Gear45Limit Switch
21Bevel Gear46Mounting Screw
22Bushing 47Mounting Bolt
23Lower Stop Block48Limit Switch
24Set Screw49Limit Switch Bracket
25Capscrew

RAM LEVEL CONTROL

1Capscrew
2Valve
3Sub Plate
4Valve Bracket Adaptor
5Valve Bracket
6Capscrew
7Mounting Bolt
8Nut
9Capscrew
10Tape Clamp Adaptor
11Tape Clamp
12Capscrew
13Tape
14Grease Fitting
15Collar
16Set Screw
17R.H. Tape Pulley
17aL.H. Tape Pulley
18Bearing
19Locking Collar
20Capscrew
21Pulley Shaft
22Mounting Bolt
23Pulley Mounting Bracket
24Tape Adjustment Screw
25Set Screw
26Indicator
27Screw Housing
28Tilt Adjust Scale
29Screw
30Bearing
31Adjusting Knob
32Mounting Bolt
33Tilt Adjust Bracket
34Mounting Bolt

CYLINDER ASSEMBLY

1Bleeder Valve
2Test Guage
3Socket
4Nipple
5Plug
6Capscrew
7Cylinder *
8Capscrew
9Piston Ring
10Piston*
11"O" Ring
12Cylinder Cap
13Rod Seal
14Capscrew
15Modular Bearing
16Packing Gland
17Mounting Bolt
18Mounting Bolt
19Ball Screw Cap
20Ball Screw Lock
21Mounting Bolt
22Ball Screw
23Ball Seat
24Ram
*Specify R.H. or L.H.
