C-150 thru C-250 Service Manual

Overview

C-150 thru C-250 Service Manual information. To download a PDF or for information about how to find your serial number, please use the appropriate button below.

Frame Assembly

1Main Bearing Stud
13Bolster Bolt (J.I.C.)
2Brass Dowel
14Washer
3Half Bushing (Main)
15Hex Nut
4Main Bearing Cap
16Hex Nut
5Frame
17Rear Wear Strip (Left & Right)
6Shim Laminated18Wear Strip (Side) (Left & Right)
7Front Gib (Left and Right)
19Nameplate
8Lockwasher
20Hex Head Cap Screw
9Hex Head Cap Screw
21Hex Head Cap Screw
10Hex Nut (Jam)
22Lockwasher
11Square Head Set Screw
23Washer
12Bolster
24Socket Head Cap Screws

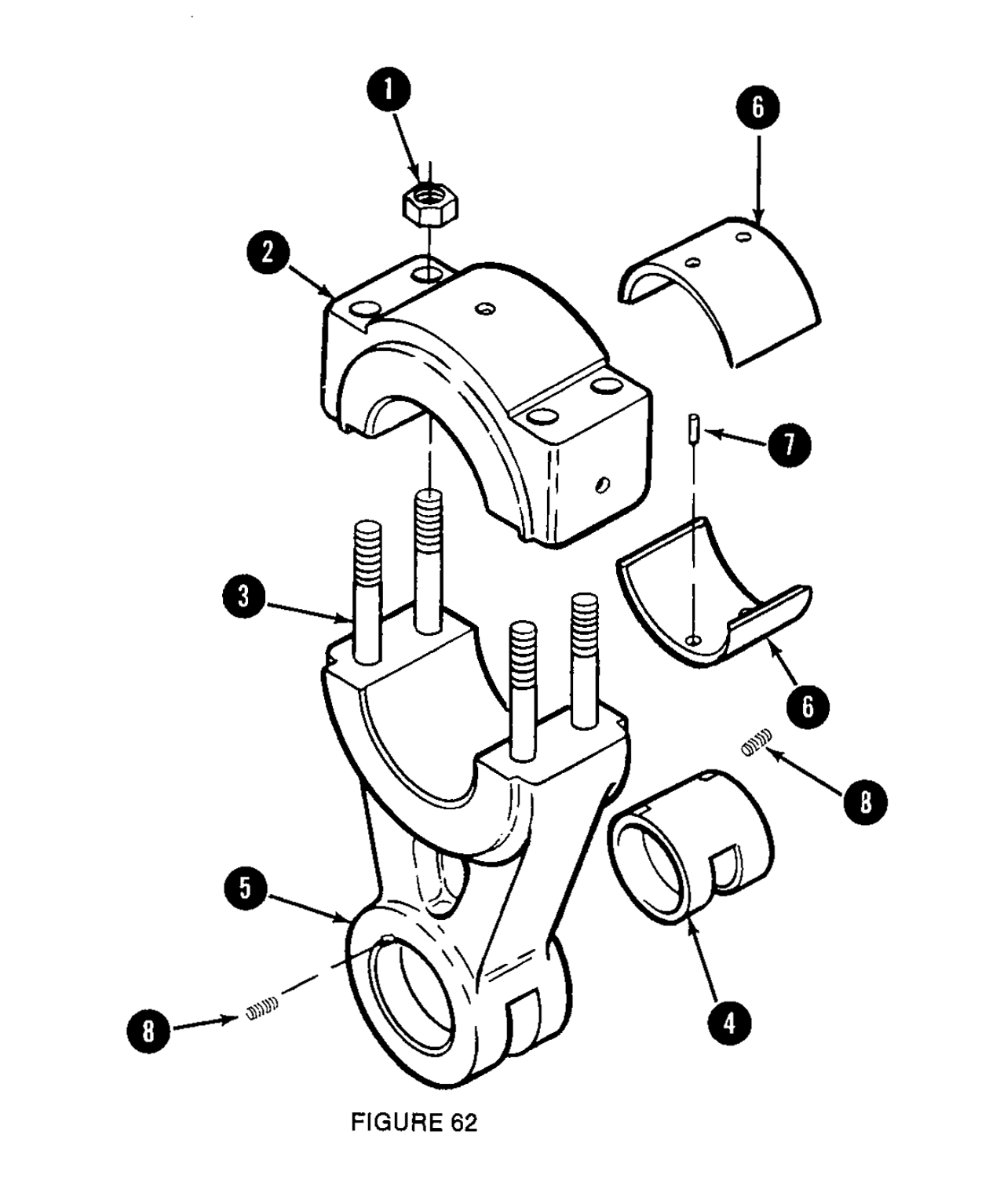

Connection Assembly

1Connection Cap Stud Nut
2Connection Cap
3Connection Cap Stud
4Wrist Pin Bushing
5Connection Strap
6Connnection Half Bushing
7Connection Cap Bushing Dowel
8Grub Screw
