AUTOMATION

FRONT-OF-LINE
DESTACKING

BCN Technical Services  offers various flexible solutions for automated blank restocking by blankloader. Depending on blank size, weight, shape, kind of material and loading speed, the user of a press line can choose among the following standardized destacking / blankloading systems.

Destackers:

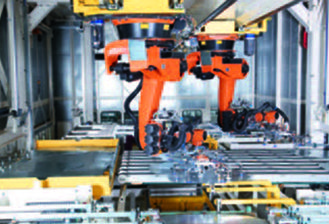

  • ‚With floor-mounted robots: Production rates up to 11 strokes / minute
  • With overhead robots: Production rates up to 13 strokes / minute

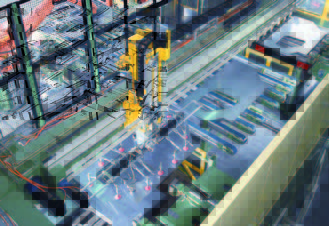

  • W ith feeder: Production rates up to 16 strokes / minute
  • With two overhead robots: Production rates up to 23 strokes / minute
CENTERING

Centering blanks before the first forming station is a basic prerequisite for excellent drawing results. A loading robot or crossbar automation then performs the part transfer onto the drawing die of Press 1.

Centering systems:

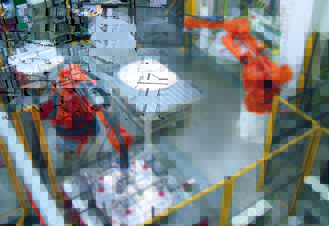

  • Gravity-type centering station
  • Optical centering station, basic
  • Mechanical centering station

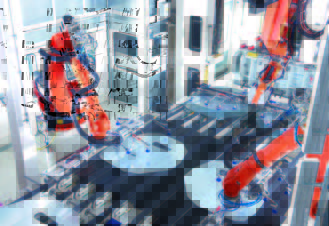

  • Optical centering station, high speed
Machine Automation Photo At Press Repair & Rebuild Company - BCN Technical Services
Automation Services Image Of Stamping Press Repair Parts - BCN Technical Services
Machine Performing Automated Industrial Clutch Repair & Rebuilding Services Photo - BCN Technical Services
Robots Used In Automation Of Press Rebuilds Image - BCN Technical Services

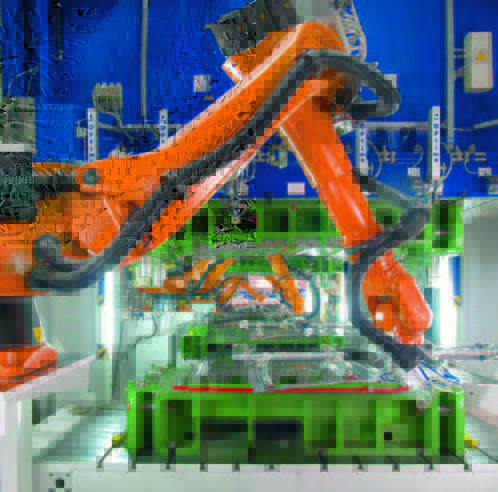

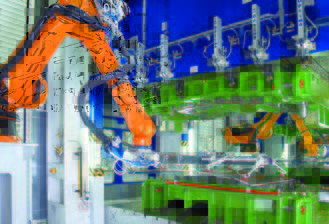

PRESS-TO-PRESS AUTOMATION

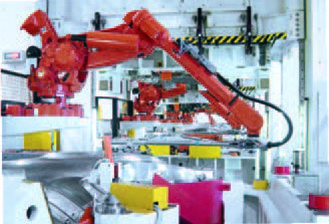

ROBOTS
Photo Of Machine For Automation Of Press Repair And Rebuild Services - BCN Technical Services
Press Parts Automation Picture - BCN Technical Services
  • Part transport with flexible orientation
  • Part rotation
  • Simple programming
  • High availability
  • Production rates up to 11 strokes / minute
  • Easily programmed to change part position

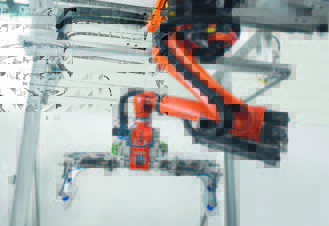

CROSSBAR ROBOT
Image Of Stamping Press Repair Parts Automation - BCN Technical Services
Photo Of Automation Machines In Press Repair & Rebuild Company - BCN Technical Services
  • Part transport with flexible orientation
  • Press distances 5 to 10 m (16.5 to 33 ft.)
  • No part rotation required
  • Easy programming
  • High uptime levels thanks to standard robots
  • Production rates up to 15 strokes / minute
  • Easily programmed to change part position
CROSSBAR FEEDER
Industrial Clutch Repair & Rebuilding Services Factory Picture - BCN Technical Services
Industrial Clutch Repair & Rebuilding Services Factory Picture - BCN Technical Services
  • Seven degrees of motion freedom
  • No intermediate station required
  • Only one set of tooling for transfer between presses
  • Production rates up to 23 strokes /minute
  • Compact construction possible
  • For servo press lines and mechanical highspeed press lines
AUTOMATION IN THE STAMPING PLANT.
FOR NEW LINES AND MODERNIZATION PROJECTS.

BCN Technical Services develops the most suitable automation concept for press lines, after careful consideration of the part families, throughput rates and space requirements.

In addition to conventional robotic and crossbar solutions, advanced crossbar automation technology offers new perspectives. For the modernization of existing press lines, we also offer production-tested system solutions for reliable, high-quality component manufacturing.

Automation for press lines:
  • Destacker / blankloader
  • Blank washer and reoiler
  • Press-to-press automation with robot, Crossbar Robot or Crossbar Feeder
  • ‚End-of-Line systems
Other Schuler automation solutions:
  • ‚Blankloaders for transfer presses
  • ‚Automation solutions for hot forming
  • ‚Stack turnover devices
  • ‚Die change systems
  • ‚Automation for machine tools
  • ‚Automation for laser systems
